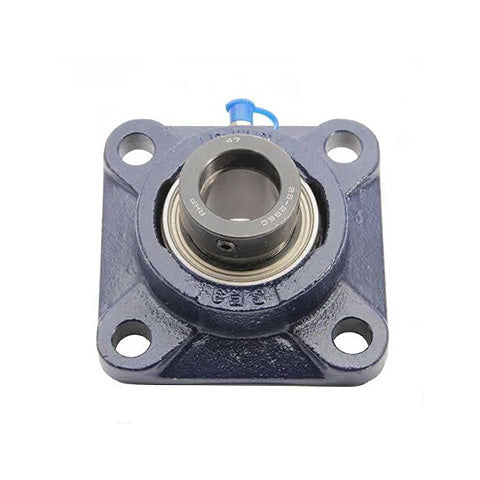

• RHP SF1-7/16EC Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Eccentric Collar Flat Back Insert
1 1

SKU: SF1.7/16EC-RHP

RHP SF1-7/16EC Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Eccentric Collar Flat Back Insert

RHP SF1-7/16EC Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Eccentric Collar Flat Back Insert
Rs. 7,564.63
Rs. 7,564.63
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 6,732.52
19+ Rs. 6,354.29
29+ Rs. 6,278.64
39+ Rs. 6,203.00
49+ Rs. 6,127.35
74+ Rs. 6,051.70
99+ Rs. 5,673.47
199+ Rs. 5,597.83
249+ Rs. 5,522.18
499+ Rs. 5,446.53
999+ Rs. 5,295.24
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
SF
Bolt Hole Centres:
91.999mm = 3.622 inch

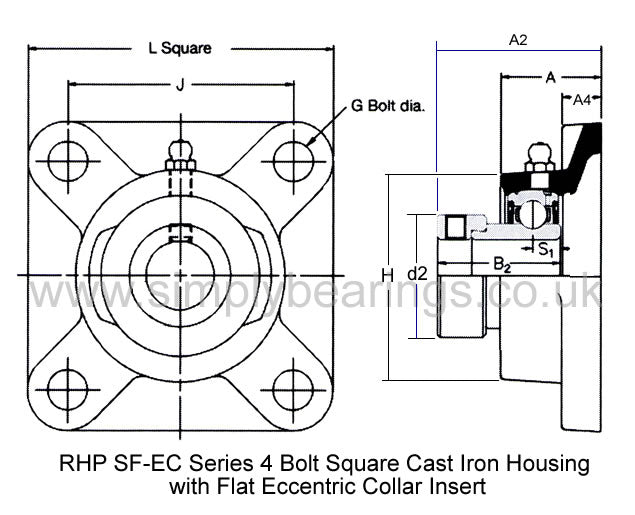

Technical
Bore 1-7/16 inch
L 4.626 inch
H 3.752 inch
J 3.622 inch
G 0.5 inch
A 1.236
A2 1.982 inch
A4 0.5 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load Cr 25700 N
Static Load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-7/16ECG+insonly">1235-1-7/16ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
