SKU: SF1.5/8EC-RHP

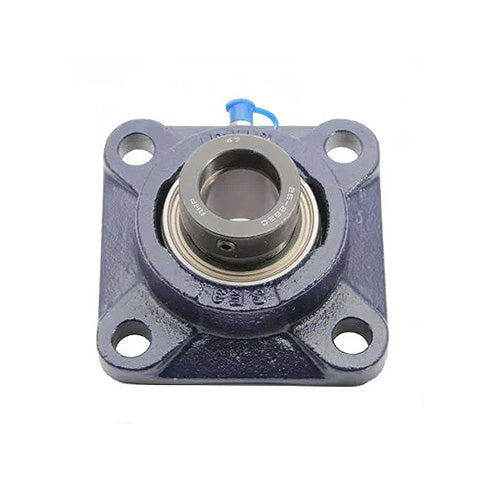

RHP SF1-5/8EC Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Eccentric Collar Flat Back Insert
RHP SF1-5/8EC Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Eccentric Collar Flat Back Insert
Regular price
Rs. 9,727.11
ex VAT
Regular price
Sale price
Rs. 9,727.11
ex VAT
In stock
Price Break
10+
Rs. 8,657.13
19+
Rs. 8,170.77
29+
Rs. 8,073.50
39+
Rs. 7,976.23
49+
Rs. 7,878.96
74+
Rs. 7,781.69
99+
Rs. 7,295.33
199+
Rs. 7,198.06
249+
Rs. 7,100.79
499+
Rs. 7,003.52
999+
Rs. 6,808.98
Couldn't load pickup availability
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 105.004mm = 4.134 inch
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| L | 5.374 inch |
| H | 4.374 inch |
| J | 4.134 inch |
| G | 0.625 inch |
| A | 1.39 |
| A2 | 2.229 inch |
| A4 | 0.563 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-5/8ECG+insonly">1245-1-5/8ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
