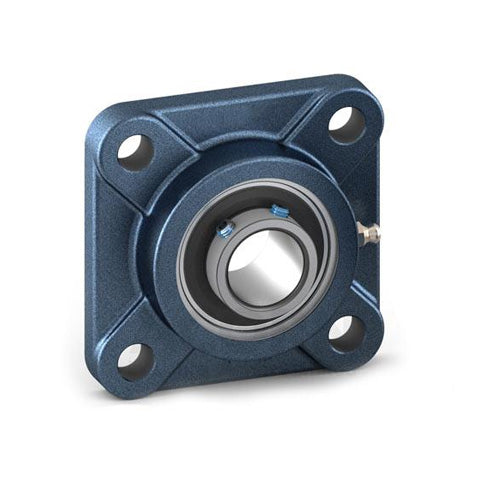

• RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF1.5/8-RHP

RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert

RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
Rs. 9,365.85
Rs. 9,365.85
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,335.61
19+ Rs. 7,867.31
29+ Rs. 7,773.66
39+ Rs. 7,680.00
49+ Rs. 7,586.34
74+ Rs. 7,492.68
99+ Rs. 7,024.39
199+ Rs. 6,930.73
249+ Rs. 6,837.07
499+ Rs. 6,743.41
999+ Rs. 6,556.10
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, full width insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
SF
Bolt Hole Centres:
105.004mm = 4.134 inch
Technical
Bore 1-5/8 inch
L 5.374 inch
H 4.374 inch
J 4.134 inch
G 0.625 inch
A 1.39
A1 2.133 inch
A4 0.563 inch
B 1.938
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static Load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.6 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
