SKU: SF1.3/4-RHP

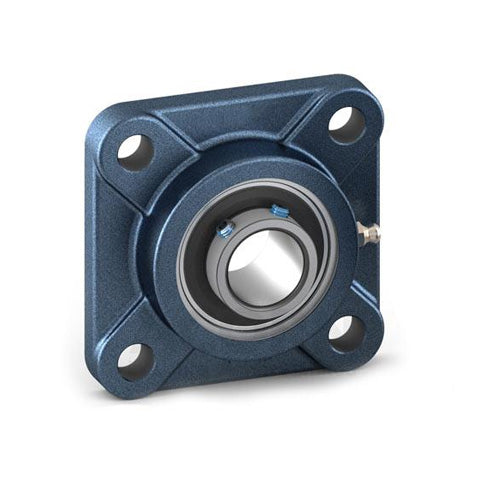

RHP SF1-3/4 Four Bolt Square Cast Iron Flange Housing and 1-3/4 inch Bore Grub Screw Full Width Insert
RHP SF1-3/4 Four Bolt Square Cast Iron Flange Housing and 1-3/4 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 9,264.88
ex VAT
Regular price
Sale price
Rs. 9,264.88
ex VAT
In stock
Price Break
10+
Rs. 8,245.74
19+
Rs. 7,782.50
29+
Rs. 7,689.85
39+
Rs. 7,597.20
49+
Rs. 7,504.55
74+
Rs. 7,411.90
99+
Rs. 6,948.66
199+
Rs. 6,856.01
249+
Rs. 6,763.36
499+
Rs. 6,670.71
999+
Rs. 6,485.42
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 105.004mm = 4.134 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 5.374 inch |
| H | 4.374 inch |
| J | 4.134 inch |
| G | 0.625 inch |
| A | 1.39 |
| A1 | 2.133 inch |
| A4 | 0.563 inch |
| B | 1.938 |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
