SKU: SF1/2EC-RHP

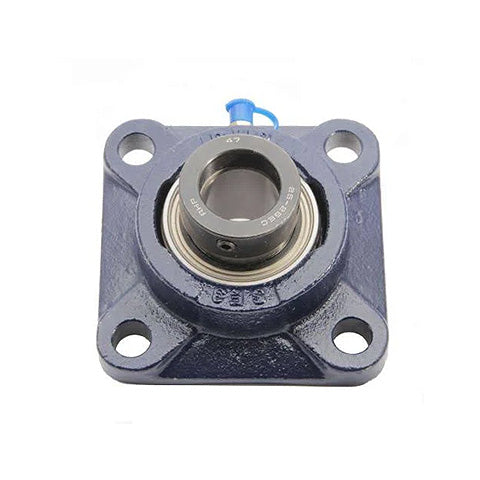

RHP SF1/2EC Four Bolt Square Cast Iron Flange Housing and 1/2 inch Bore Eccentric Collar Flat Back Insert
RHP SF1/2EC Four Bolt Square Cast Iron Flange Housing and 1/2 inch Bore Eccentric Collar Flat Back Insert
Regular price
Rs. 4,419.69
ex VAT
Regular price
Sale price
Rs. 4,419.69
ex VAT
In stock
Price Break
10+
Rs. 3,933.52
19+
Rs. 3,712.54
29+
Rs. 3,668.34
39+
Rs. 3,624.15
49+
Rs. 3,579.95
74+
Rs. 3,535.75
99+
Rs. 3,314.77
199+
Rs. 3,270.57
249+
Rs. 3,226.37
499+
Rs. 3,182.18
999+
Rs. 3,093.78
Couldn't load pickup availability
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 54mm = 2.126 inch
Technical
Technical
| Bore | 1/2 inch |
|---|---|
| L | 3 inch |
| H | 2.067 inch |
| J | 2.126 inch |
| G | 0.375 inch |
| A | 0.969 |
| A2 | 1.536 inch |
| A4 | 0.374 inch |
| B2 | 1.124 inch |
| s1 | 0.258 inch |
| d2 | 1.125 inch |
| Dynamic load Cr | 9550 N |
| Static Load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-1/2ECG+insonly">1217-1/2ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
