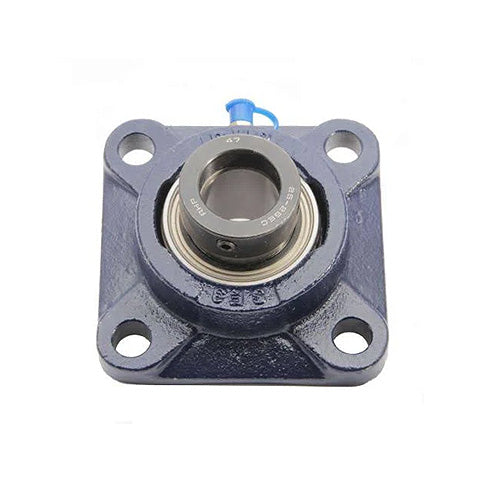

• RHP SF1-15/16DEC Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Eccentric Collar Full Width Insert
1 1

SKU: SF1.15/16DEC-RHP

RHP SF1-15/16DEC Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Eccentric Collar Full Width Insert

RHP SF1-15/16DEC Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Eccentric Collar Full Width Insert
Rs. 12,871.55 ex VAT
Rs. 12,871.55 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 11,455.68
19+ Rs. 10,812.10
29+ Rs. 10,683.39
39+ Rs. 10,554.67
49+ Rs. 10,425.96
74+ Rs. 10,297.24
99+ Rs. 9,653.66
199+ Rs. 9,524.95
249+ Rs. 9,396.23
499+ Rs. 9,267.52
999+ Rs. 9,010.09
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
SF
Bolt Hole Centres:
110.998mm = 4.37 inch
Technical
Bore 1-15/16 inch
L 5.626 inch
H 4.563 inch
J 4.37 inch
G 0.625 inch
A 1.563 inch
A3 2.601 inch
A4 0.563 inch
B3 2.469 inch
s2 0.97 inch
d2 2.75 inch
Dynamic load Cr 35000 N
Static Load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16DECG+insonly">1050-1-15/16DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
