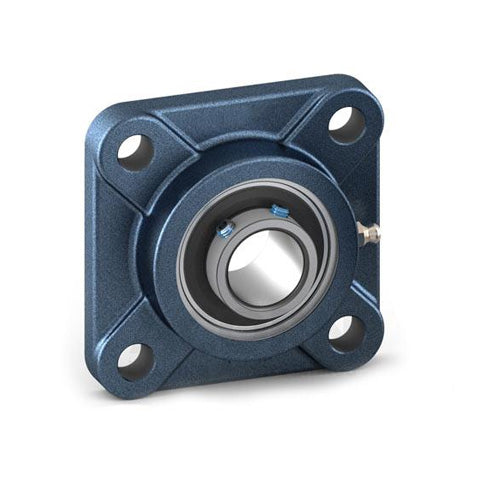

• RHP SF1-15/16 Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF1.15/16-RHP

RHP SF1-15/16 Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Grub Screw Full Width Insert

RHP SF1-15/16 Four Bolt Square Cast Iron Flange Housing and 1-15/16 inch Bore Grub Screw Full Width Insert
Rs. 10,623.71 ex VAT
Rs. 10,623.71 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 9,455.10
19+ Rs. 8,923.92
29+ Rs. 8,817.68
39+ Rs. 8,711.44
49+ Rs. 8,605.21
74+ Rs. 8,498.97
99+ Rs. 7,967.78
199+ Rs. 7,861.55
249+ Rs. 7,755.31
499+ Rs. 7,649.07
999+ Rs. 7,436.60
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, full width insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
SF
Bolt Hole Centres:
110.998mm = 4.37 inch
Technical
Bore 1-15/16 inch
L 5.626 inch
H 4.563 inch
J 4.37 inch
G 0.625 inch
A 1.563
A1 2.383 inch
A4 0.563 inch
B 2.031
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static Load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
