SKU: SF1.11/16DEC-RHP

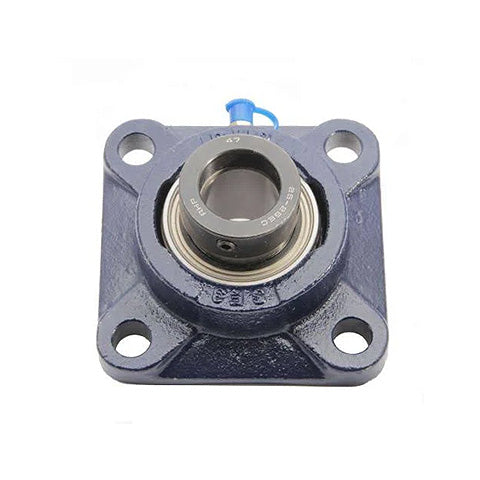

RHP SF1-11/16DEC Four Bolt Square Cast Iron Flange Housing and 1-11/16 inch Bore Eccentric Collar Full Width Insert
RHP SF1-11/16DEC Four Bolt Square Cast Iron Flange Housing and 1-11/16 inch Bore Eccentric Collar Full Width Insert
Regular price
Rs. 11,562.11
ex VAT
Regular price
Sale price
Rs. 11,562.11
ex VAT
In stock
Price Break
10+
Rs. 10,290.28
19+
Rs. 9,712.17
29+
Rs. 9,596.55
39+
Rs. 9,480.93
49+
Rs. 9,365.31
74+
Rs. 9,249.69
99+
Rs. 8,671.58
199+
Rs. 8,555.96
249+
Rs. 8,440.34
499+
Rs. 8,324.72
999+
Rs. 8,093.48
Couldn't load pickup availability
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 105.004mm = 4.134 inch
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 5.374 inch |
| H | 4.374 inch |
| J | 4.134 inch |
| G | 0.625 inch |
| A | 1.39 inch |
| A3 | 2.319 inch |
| A4 | 0.563 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16DECG+insonly">1045-1-11/16DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
