SKU: SF1.1/2-RHP

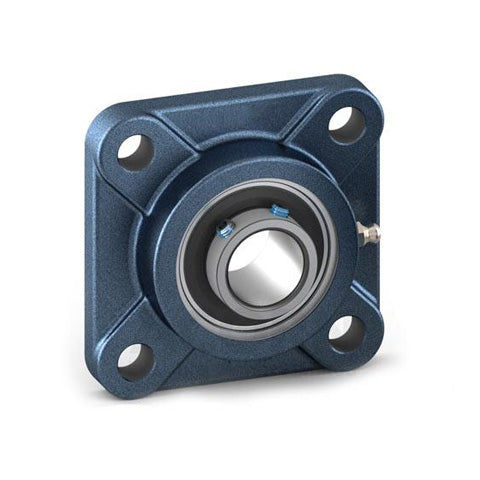

RHP SF1-1/2 Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Grub Screw Full Width Insert
RHP SF1-1/2 Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 8,008.63
ex VAT
Regular price
Sale price
Rs. 8,008.63
ex VAT
In stock
Price Break
10+
Rs. 7,127.68
19+
Rs. 6,727.25
29+
Rs. 6,647.16
39+
Rs. 6,567.08
49+
Rs. 6,486.99
74+
Rs. 6,406.90
99+
Rs. 6,006.47
199+
Rs. 5,926.39
249+
Rs. 5,846.30
499+
Rs. 5,766.21
999+
Rs. 5,606.04
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 101.5mm = 3.996 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.126 inch |
| H | 4000 inch |
| J | 3.996 inch |
| G | 0.5 inch |
| A | 1.374 |
| A1 | 2.133 inch |
| A4 | 0.5 inch |
| B | 1.938 |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
