SKU: SER.212

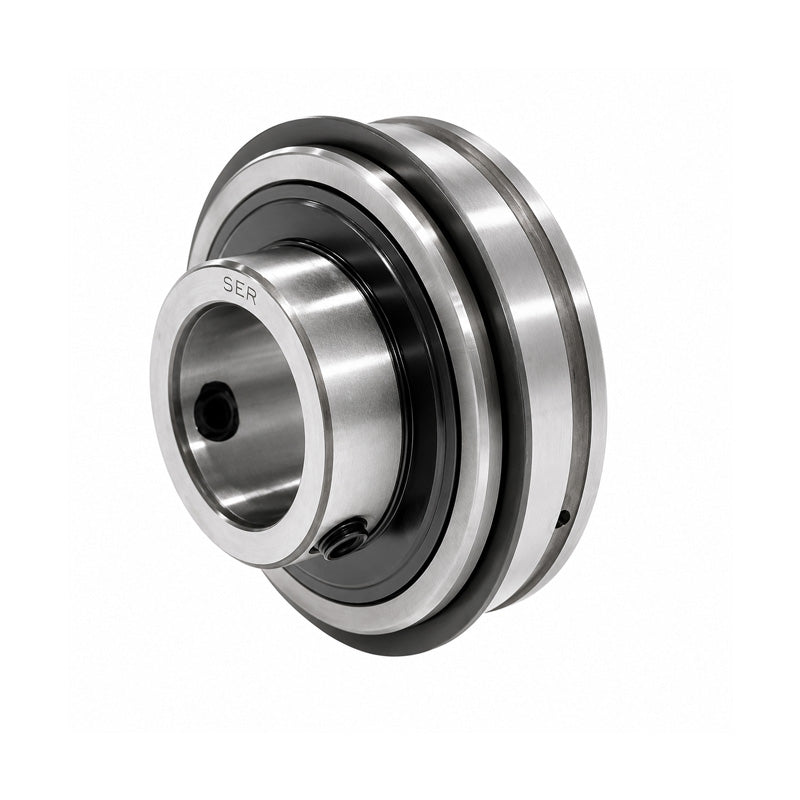

SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
Regular price
Rs. 5,481.76
Regular price
Sale price
Rs. 5,481.76
Taxes included.
In stock
Price Break
10+
Rs. 4,878.77
19+
Rs. 4,604.68
29+
Rs. 4,549.86
39+
Rs. 4,495.04
49+
Rs. 4,440.23
74+
Rs. 4,385.41
99+
Rs. 4,111.32
199+
Rs. 4,056.50
249+
Rs. 4,001.68
499+
Rs. 3,946.87
999+
Rs. 3,837.23
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- SER
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 31.8mm |
| n | 25.4mm |
| m | 39.7mm |
| E | 25.82mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.92mm |
| J | 3.28mm |
| P | 116.6mm |
| G | 11.1mm |
| Grub screw | M10x1.0 |
| Weight | 1.71 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
