SKU: SER.210-31

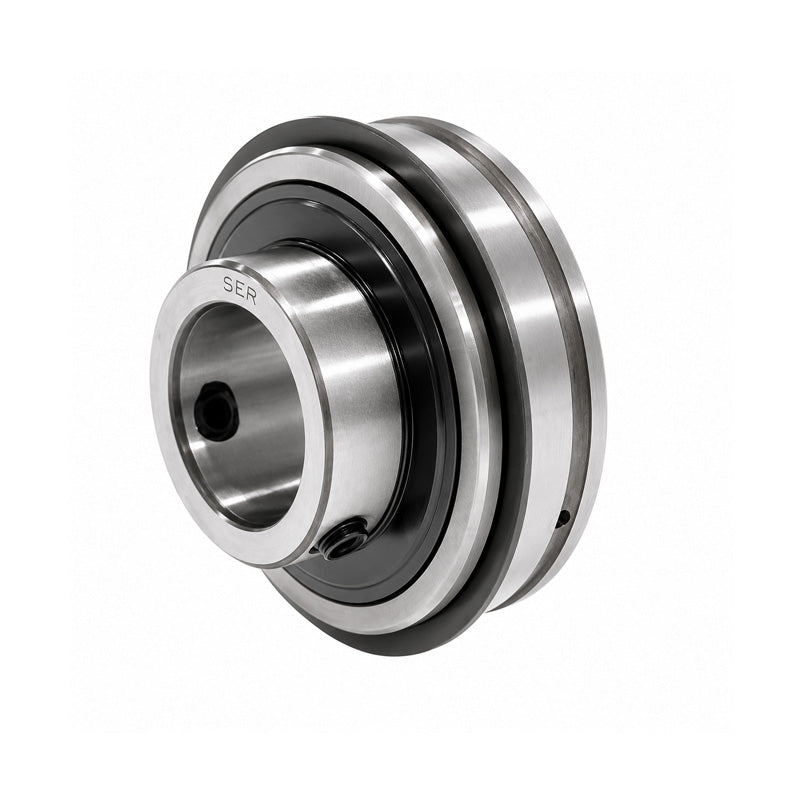

SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
Regular price
Rs. 6,033.52
Regular price
Sale price
Rs. 6,033.52
Taxes included.
In stock
Price Break
10+
Rs. 5,369.83
19+
Rs. 5,068.16
29+
Rs. 5,007.82
39+
Rs. 4,947.49
49+
Rs. 4,887.15
74+
Rs. 4,826.82
99+
Rs. 4,525.14
199+
Rs. 4,464.80
249+
Rs. 4,404.47
499+
Rs. 4,344.13
999+
Rs. 4,223.46
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 90mm
- Style:
- SER
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 28.6mm |
| n | 19mm |
| m | 32.6mm |
| E | 22.62mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 8.32mm |
| J | 3.28mm |
| P | 96.5mm |
| G | 9.5mm |
| Grub screw | 3/8"-24UNF |
| Weight | 0.93 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
