SKU: SER.208-24

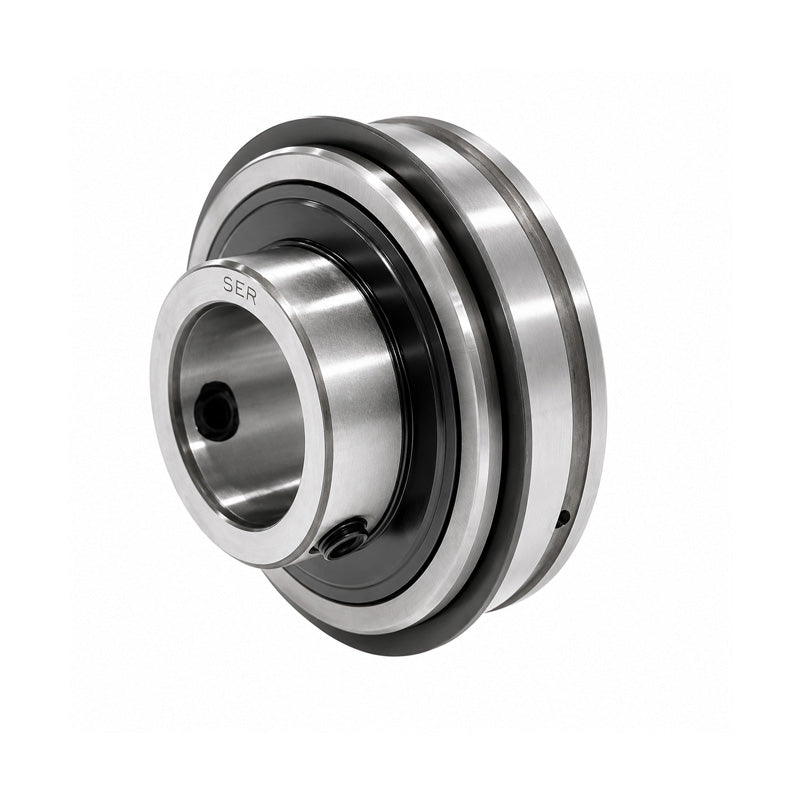

SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
Regular price
Rs. 1,121.44
Regular price
Sale price
Rs. 1,121.44
Taxes included.
In stock
Price Break
10+
Rs. 998.08
19+
Rs. 942.01
29+
Rs. 930.80
39+
Rs. 919.58
49+
Rs. 908.37
74+
Rs. 897.15
99+
Rs. 841.08
199+
Rs. 829.87
249+
Rs. 818.65
499+
Rs. 807.44
999+
Rs. 785.01
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- SER
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 27.8mm |
| n | 19mm |
| m | 30.2mm |
| E | 22.62mm |
| a | 1.65mm |
| h | 6.4mm |
| R | 8.72mm |
| J | 3.28mm |
| P | 86.6mm |
| G | 8mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.72 kg |
| Dynamic load | 2280 kgf |
| Static load | 1590 kgf |
| Rec max speed | 4000 rpm |
