SKU: SER.207-20

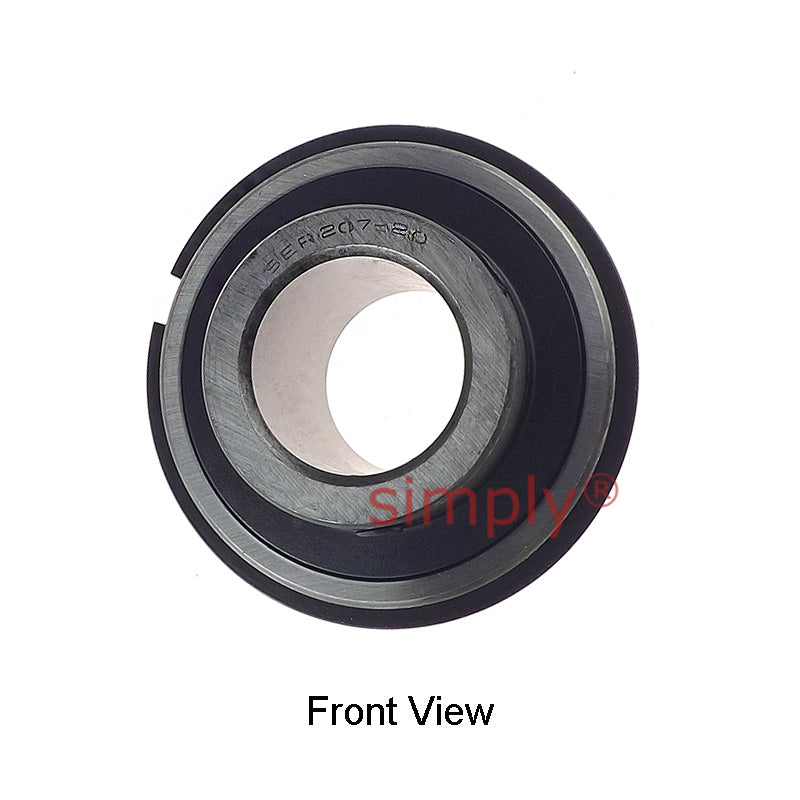

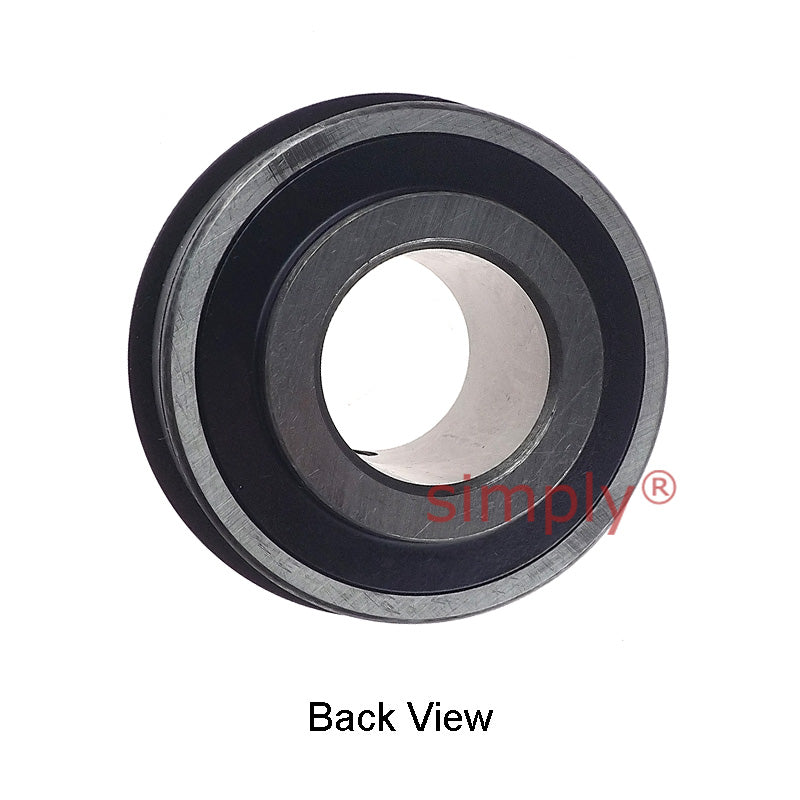

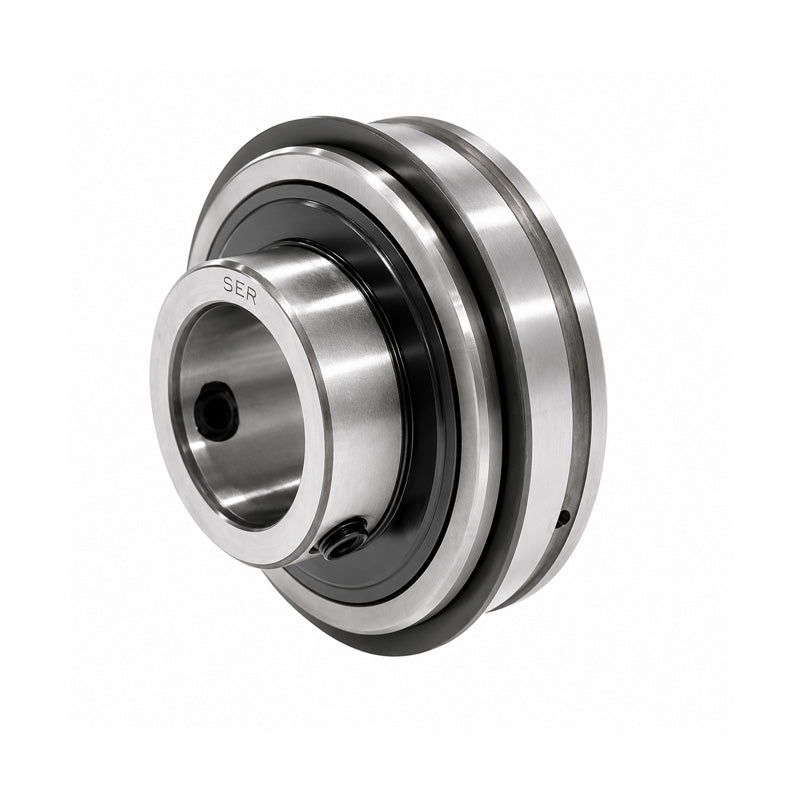

SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
Regular price
Rs. 2,189.58
ex VAT
Regular price
Sale price
Rs. 2,189.58
ex VAT
In stock
Price Break
10+
Rs. 1,948.73
19+
Rs. 1,839.25
29+
Rs. 1,817.35
39+
Rs. 1,795.46
49+
Rs. 1,773.56
74+
Rs. 1,751.66
99+
Rs. 1,642.19
199+
Rs. 1,620.29
249+
Rs. 1,598.39
499+
Rs. 1,576.50
999+
Rs. 1,532.71
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- SER
- Type:
- Parallel Outer
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 23.8mm |
| n | 17.5mm |
| m | 25.4mm |
| E | 18.62mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 6.72mm |
| J | 3.28mm |
| P | 78.6mm |
| G | 6.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.56 kg |
| Dynamic load | 2020 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
