SKU: SER.205-14

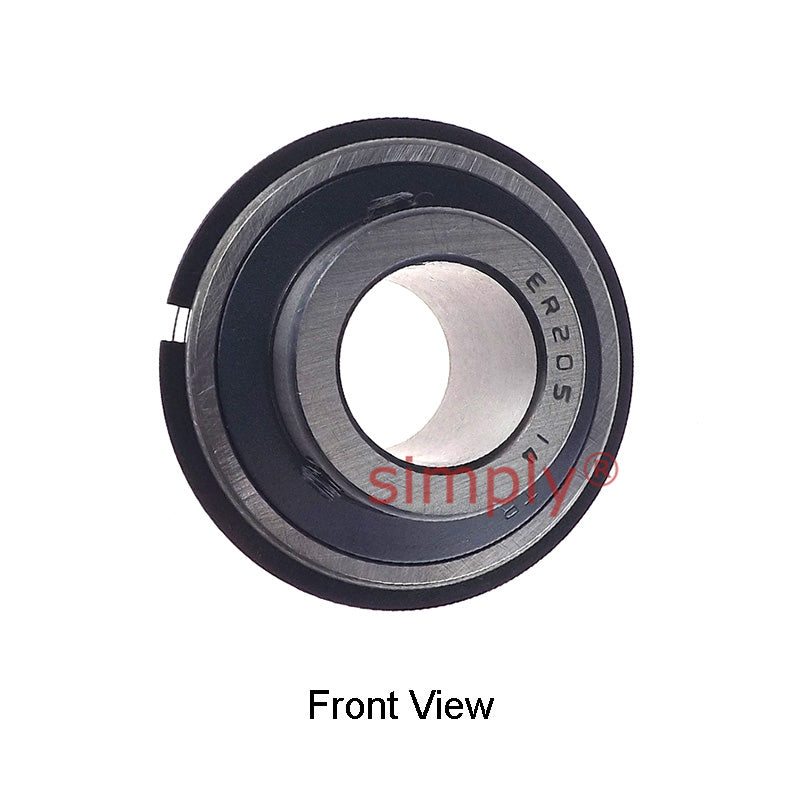

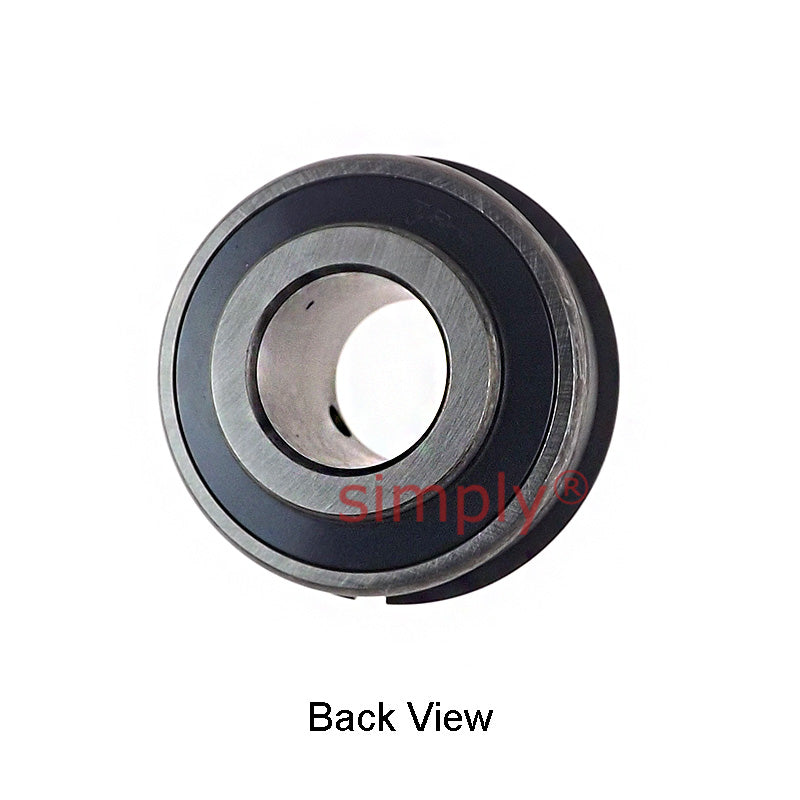

SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
Regular price
Rs. 1,473.50
Regular price
Sale price
Rs. 1,473.50
Taxes included.
In stock
Price Break
10+
Rs. 1,311.42
19+
Rs. 1,237.74
29+
Rs. 1,223.01
39+
Rs. 1,208.27
49+
Rs. 1,193.54
74+
Rs. 1,178.80
99+
Rs. 1,105.13
199+
Rs. 1,090.39
249+
Rs. 1,075.66
499+
Rs. 1,060.92
999+
Rs. 1,031.45
Description
Description
|

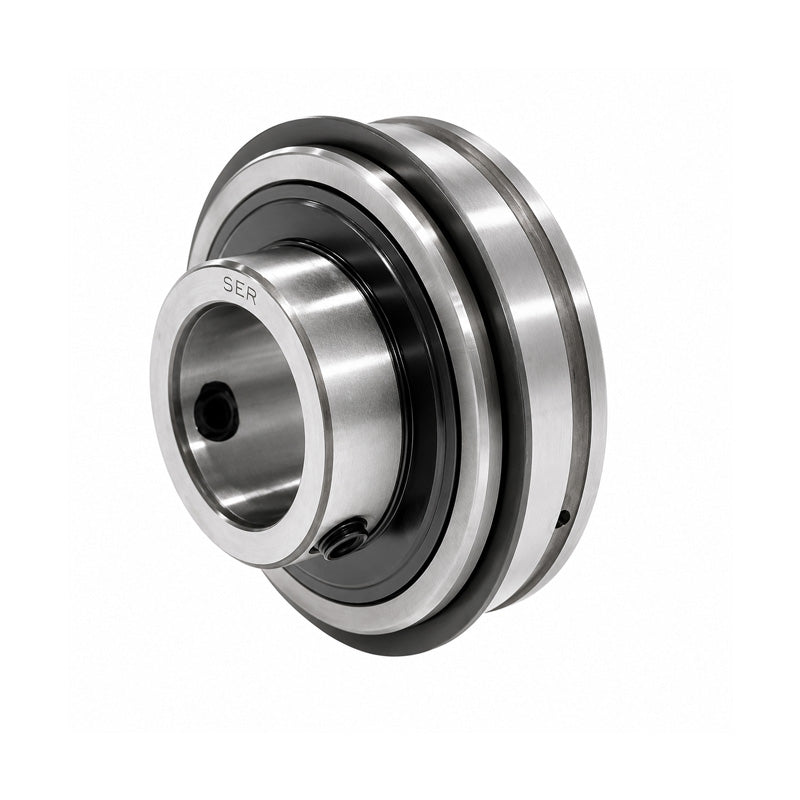

SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- SER
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34.9mm |
| Be | 19.1mm |
| n | 13.1mm |
| m | 21.8mm |
| E | 15.29mm |
| a | 1.07mm |
| h | 5.2mm |
| R | 5.74mm |
| J | 2.46mm |
| P | 57.9mm |
| G | 5.6mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.27 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
