SKU: SER.204-12

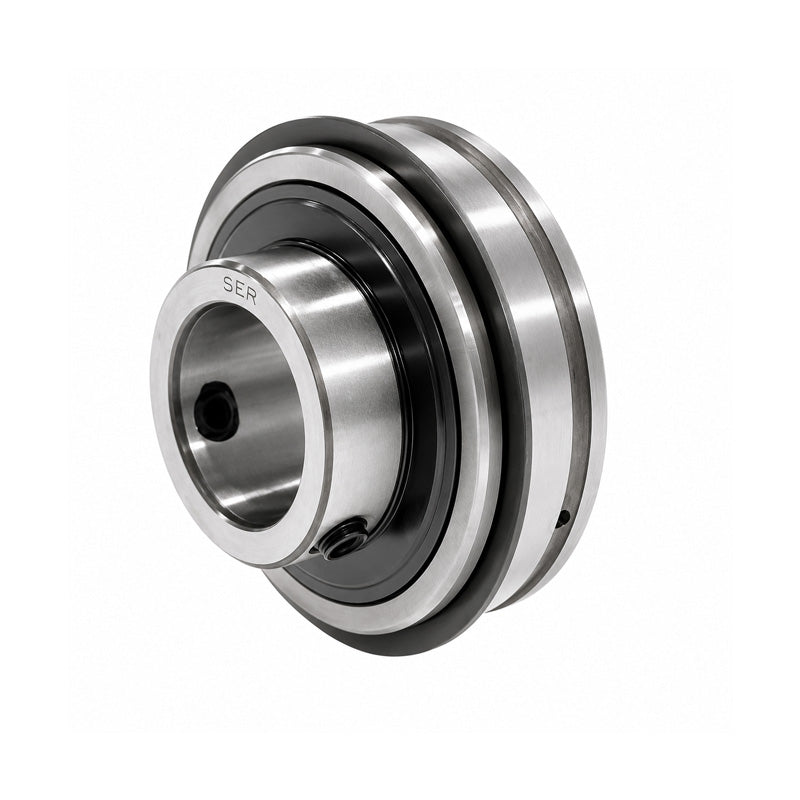

SER204-12 Imperial Bearing Insert and Snap Ring 3/4 inch Bore 47mm Outside Dia
SER204-12 Imperial Bearing Insert and Snap Ring 3/4 inch Bore 47mm Outside Dia
Regular price
Rs. 1,067.56
ex VAT
Regular price
Sale price
Rs. 1,067.56
ex VAT
In stock
Price Break
10+
Rs. 950.13
19+
Rs. 896.75
29+
Rs. 886.07
39+
Rs. 875.40
49+
Rs. 864.72
74+
Rs. 854.05
99+
Rs. 800.67
199+
Rs. 789.99
249+
Rs. 779.32
499+
Rs. 768.64
999+
Rs. 747.29
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SER
- Type:
- Parallel Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
