SKU: SER.204

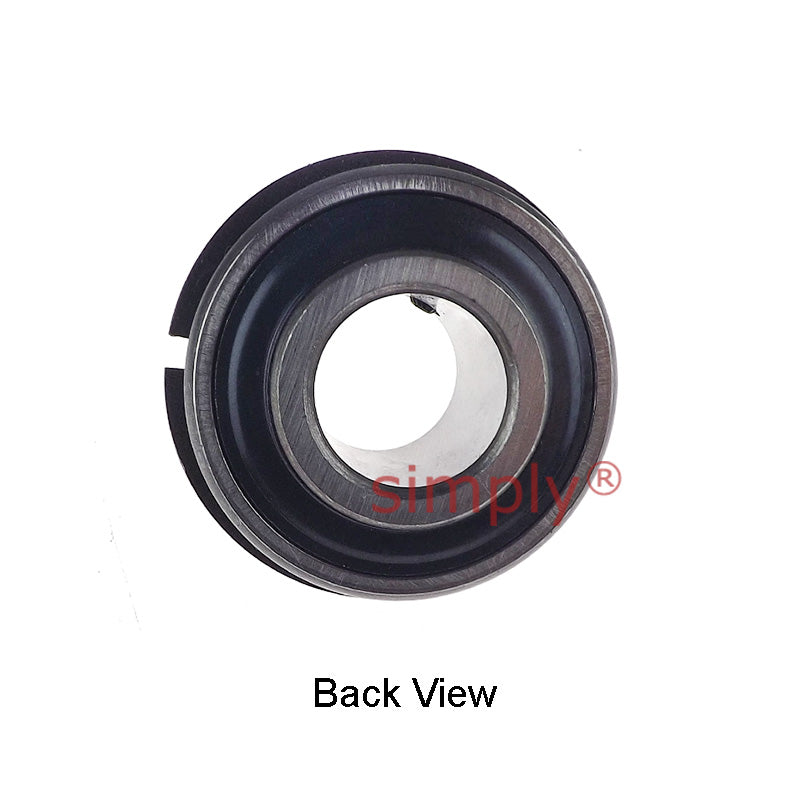

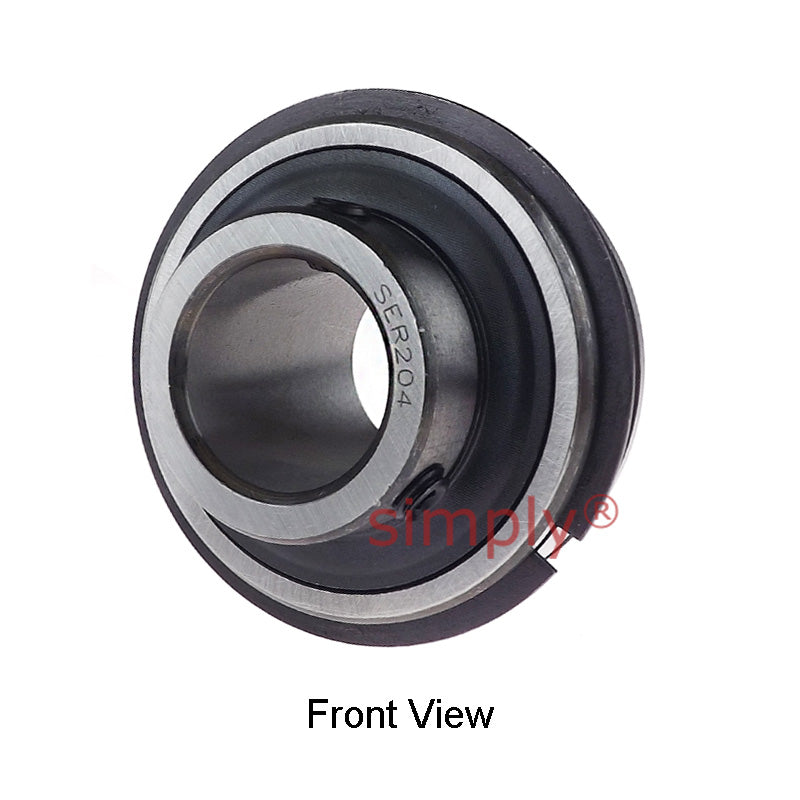

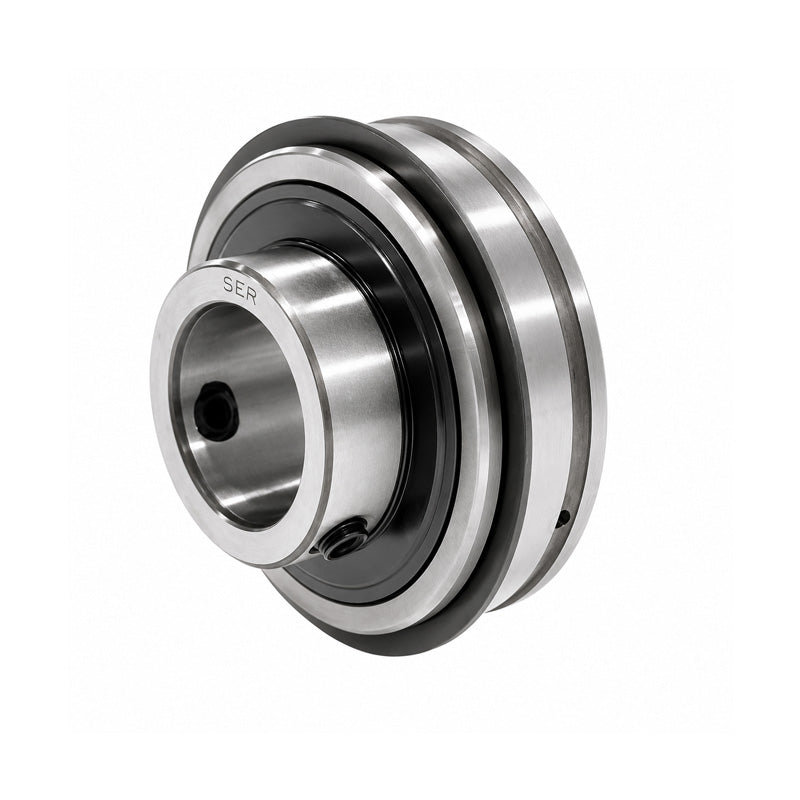

SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia
SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia
Regular price
Rs. 1,116.32
Regular price
Sale price
Rs. 1,116.32
Taxes included.
In stock
Price Break
10+
Rs. 993.52
19+
Rs. 937.71
29+
Rs. 926.55
39+
Rs. 915.38
49+
Rs. 904.22
74+
Rs. 893.06
99+
Rs. 837.24
199+
Rs. 826.08
249+
Rs. 814.91
499+
Rs. 803.75
999+
Rs. 781.42
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- SER
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
