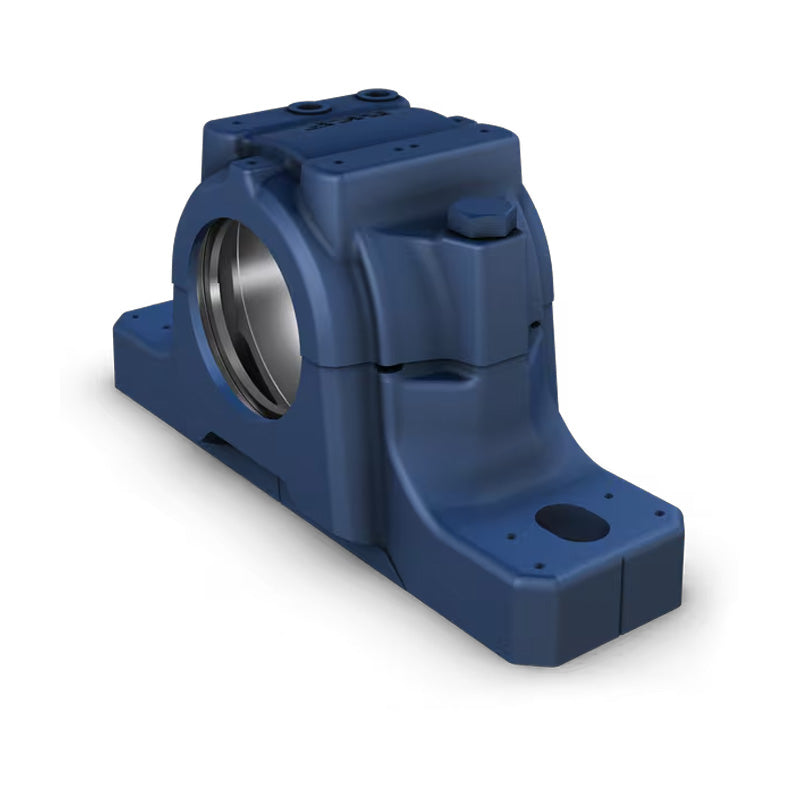

SKF SE509VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
SKF SE509VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
Regular price
Rs. 15,349.45
Regular price
Sale price
Rs. 15,349.45
Taxes included.
Equivalent to: SNL509VU
In stock
Price Break
10+
Rs. 13,661.01
19+
Rs. 12,893.54
29+
Rs. 12,740.04
39+
Rs. 12,586.55
49+
Rs. 12,433.05
74+
Rs. 12,279.56
99+
Rs. 11,512.09
199+
Rs. 11,358.59
249+
Rs. 11,205.10
499+
Rs. 11,051.60
999+
Rs. 10,744.62
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL509VU
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical
| da | 40mm |
|---|---|
| A | 3-3/8 inch = 85mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-13/16 inch = 97mm |
| A3 | 5-15/16 inch = 150mm |
| H | 4-5/16 inch = 109mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.38 kg |
