SKU: SE508-607V-SKF

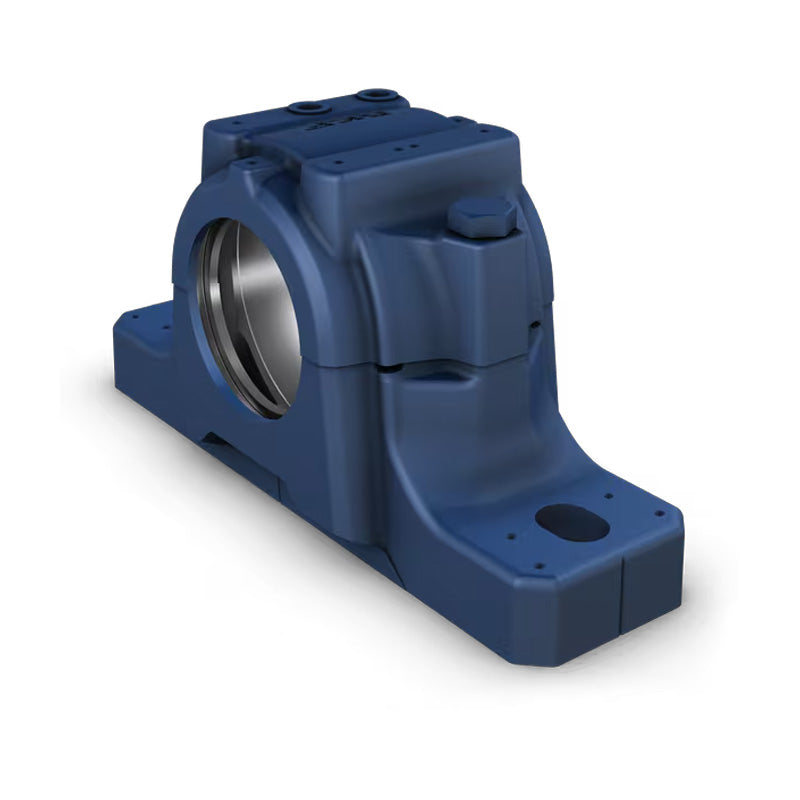

SKF SE508-607V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
SKF SE508-607V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
Regular price
Rs. 9,993.15
Regular price
Sale price
Rs. 9,993.15
Taxes included.
Equivalent to: SNL508-607V
In stock
Price Break
10+
Rs. 8,893.90
19+
Rs. 8,394.25
29+
Rs. 8,294.31
39+
Rs. 8,194.38
49+
Rs. 8,094.45
74+
Rs. 7,994.52
99+
Rs. 7,494.86
199+
Rs. 7,394.93
249+
Rs. 7,295.00
499+
Rs. 7,195.07
999+
Rs. 6,995.21
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL508-607V
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical
| da | 30mm |
|---|---|
| A | 3-3/8 inch = 85mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-13/16 inch = 97mm |
| A3 | 5-3/4 inch = 145mm |
| H | 4-1/4 inch = 108mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.38 kg |
