• RHP SCHB2 BSP Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
1 1

SKU: SCHB2-RHP

RHP SCHB2 BSP Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter

RHP SCHB2 BSP Thread Cast Iron Hanger Bearing Unit and 2 inch Bore Insert 121mm Outside Diameter
Rs. 21,695.73 ex VAT
Rs. 21,695.73 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 19,309.20
19+ Rs. 18,224.41
29+ Rs. 18,007.46
39+ Rs. 17,790.50
49+ Rs. 17,573.54
74+ Rs. 17,356.58
99+ Rs. 16,271.80
199+ Rs. 16,054.84
249+ Rs. 15,837.88
499+ Rs. 15,620.93
999+ Rs. 15,187.01
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

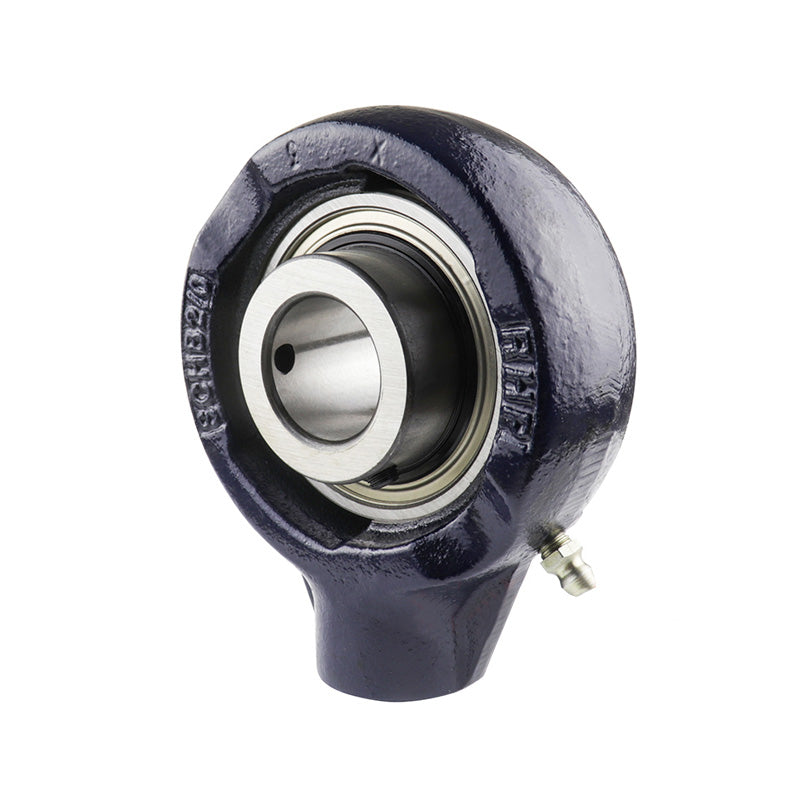

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has BSP threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
121mm
Style:
SCHB
Technical
Bore 2 inch
G1 0.827 inch
L 4.764 inch
H 5.669 inch
H1 3.252 inch
Threads 1 BSP
A 1.87 inch
A1 1.094 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
