SKU: SCHB2.1/4-RHP

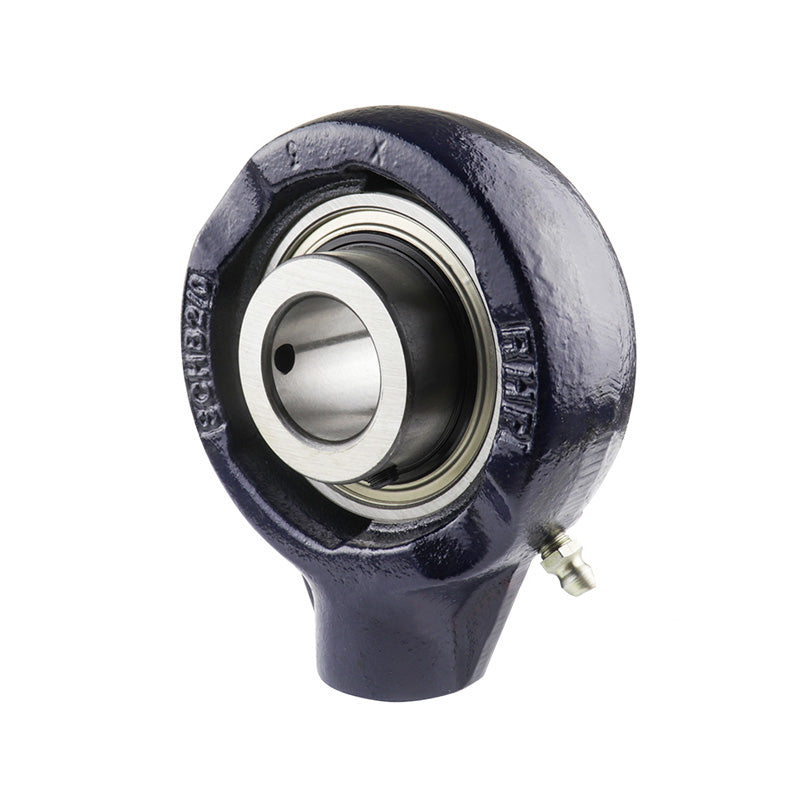

RHP SCHB2-1/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter
RHP SCHB2-1/4 BSP Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter
Regular price
Rs. 21,572.59
ex VAT
Regular price
Sale price
Rs. 21,572.59
ex VAT
In stock
Price Break
10+
Rs. 19,199.61
19+
Rs. 18,120.98
29+
Rs. 17,905.25
39+
Rs. 17,689.52
49+
Rs. 17,473.80
74+
Rs. 17,258.07
99+
Rs. 16,179.44
199+
Rs. 15,963.72
249+
Rs. 15,747.99
499+
Rs. 15,532.26
999+
Rs. 15,100.81
Couldn't load pickup availability
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 143mm
- Style:
- SCHB
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| G1 | 1.142 inch |
| L | 5.63 inch |
| H | 6.831 inch |
| H1 | 4 inch |
| Threads | 1-1/4 BSP |
| A | 2.303 inch |
| A1 | 1.218 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
