• RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
1 1

SKU: SCH40-RHP

RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter

RHP SCH40 Metric Thread Cast Iron Hanger Bearing Unit and 40mm Bore Insert 107mm Outside Diameter
Rs. 11,213.16
Rs. 11,213.16
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 9,979.71
19+ Rs. 9,419.05
29+ Rs. 9,306.92
39+ Rs. 9,194.79
49+ Rs. 9,082.66
74+ Rs. 8,970.53
99+ Rs. 8,409.87
199+ Rs. 8,297.74
249+ Rs. 8,185.61
499+ Rs. 8,073.48
999+ Rs. 7,849.21
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

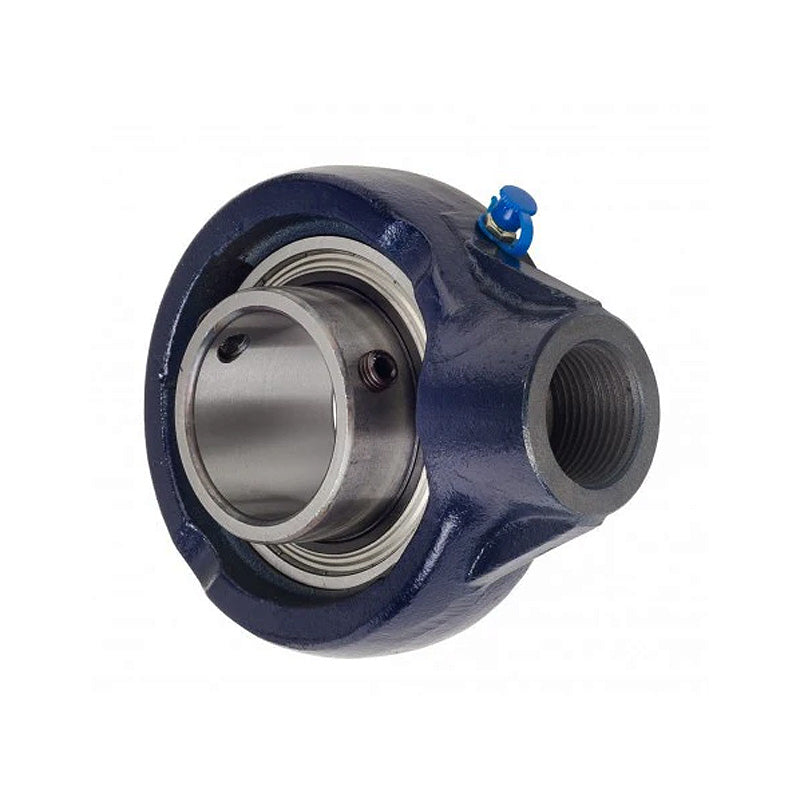

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Outside Diameter:
107mm
Style:
SCH

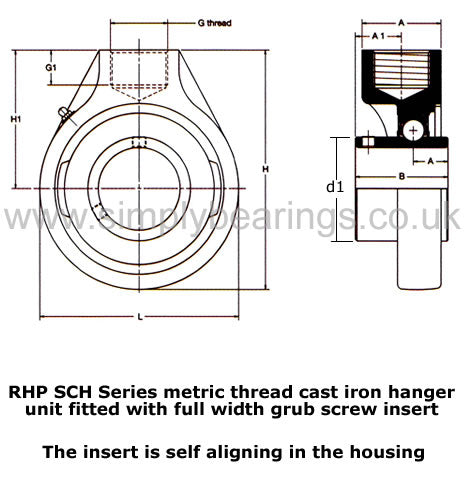

Technical
Bore 40mm
G1 19mm
L 107mm
H 127.5mm
H1 73mm
Threads M24X3 Metric
A 39.5mm
A1 27.79mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
