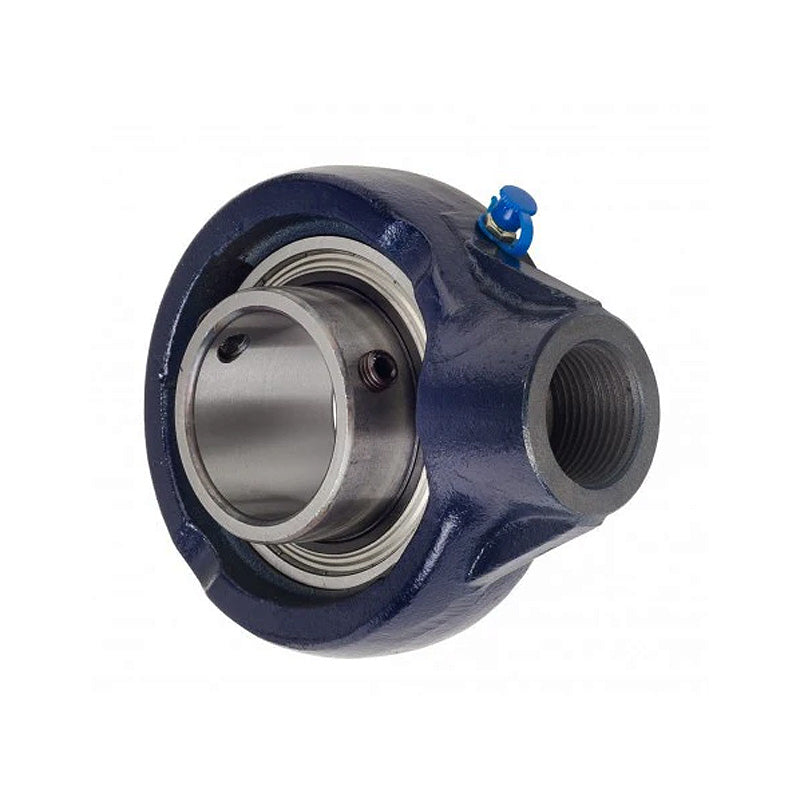

• RHP SCH1-3/8 Metric Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
1 1

SKU: SCH1.3/8-RHP

RHP SCH1-3/8 Metric Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter

RHP SCH1-3/8 Metric Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
Rs. 10,194.41 ex VAT
Rs. 10,194.41 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 9,073.02
19+ Rs. 8,563.30
29+ Rs. 8,461.36
39+ Rs. 8,359.42
49+ Rs. 8,257.47
74+ Rs. 8,155.53
99+ Rs. 7,645.81
199+ Rs. 7,543.86
249+ Rs. 7,441.92
499+ Rs. 7,339.98
999+ Rs. 7,136.09
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
97mm
Style:
SCH
Technical
Bore 1-3/8 inch
G1 0.748 inch
L 3.819 inch
H 4.685 inch
H1 2.748 inch
Threads M24X3 Metric
A 1.555 inch
A1 1 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
