SKU: SBPFT207.TRI

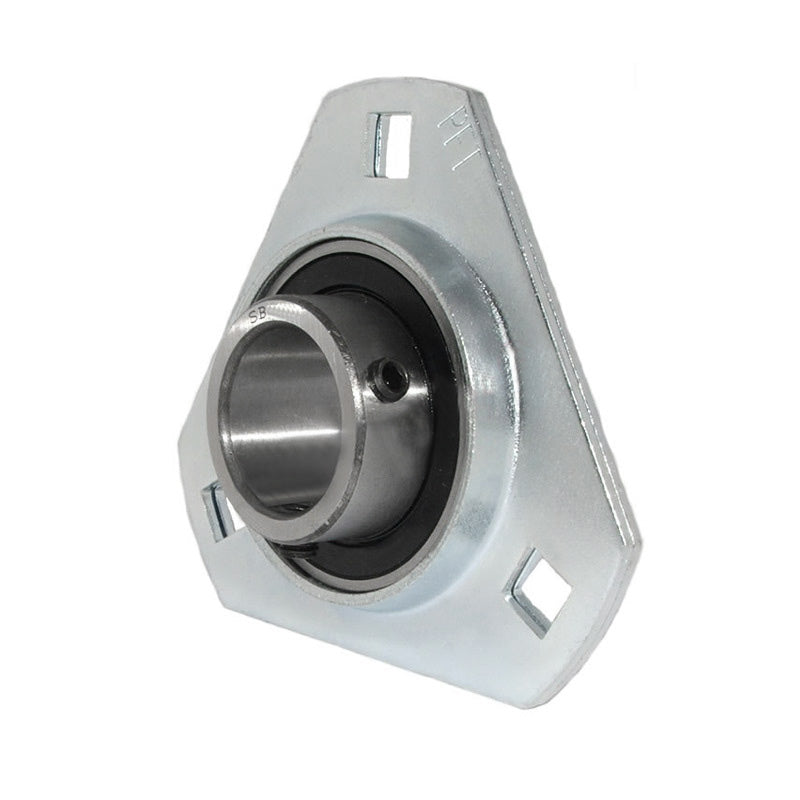

SBPFT207 Pressed Steel 3 Bolt Triangle Flange Housing with 35mm insert
SBPFT207 Pressed Steel 3 Bolt Triangle Flange Housing with 35mm insert
Regular price
Rs. 1,748.74
Regular price
Sale price
Rs. 1,748.74
Taxes included.
Equivalent to: SLFT35
In stock
Price Break
10+
Rs. 1,556.38
19+
Rs. 1,468.94
29+
Rs. 1,451.45
39+
Rs. 1,433.97
49+
Rs. 1,416.48
74+
Rs. 1,398.99
99+
Rs. 1,311.56
199+
Rs. 1,294.07
249+
Rs. 1,276.58
499+
Rs. 1,259.09
999+
Rs. 1,224.12
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
Equivalent: SLFT35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- SBPFT
- Pitch Circle Diameter:
- 100mm

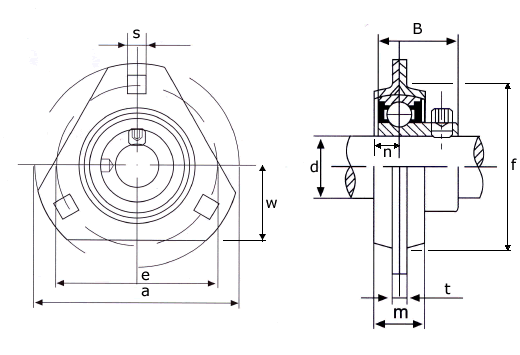

Technical
Technical
| d | 35mm |
|---|---|
| a | 122mm |
| e | 100mm |
| w | 44.5mm |
| m | 20mm |
| s | 11mm |
| t | 5.2mm |
| f | 81mm |
| B | 32mm |
| n | 8.5mm |
| Bolt | M10 |
| Weight | 0.74 kg |
| Dynamic load | 2010 N |
| Static load | 1390 N |
