SKU: SBLF.207-22

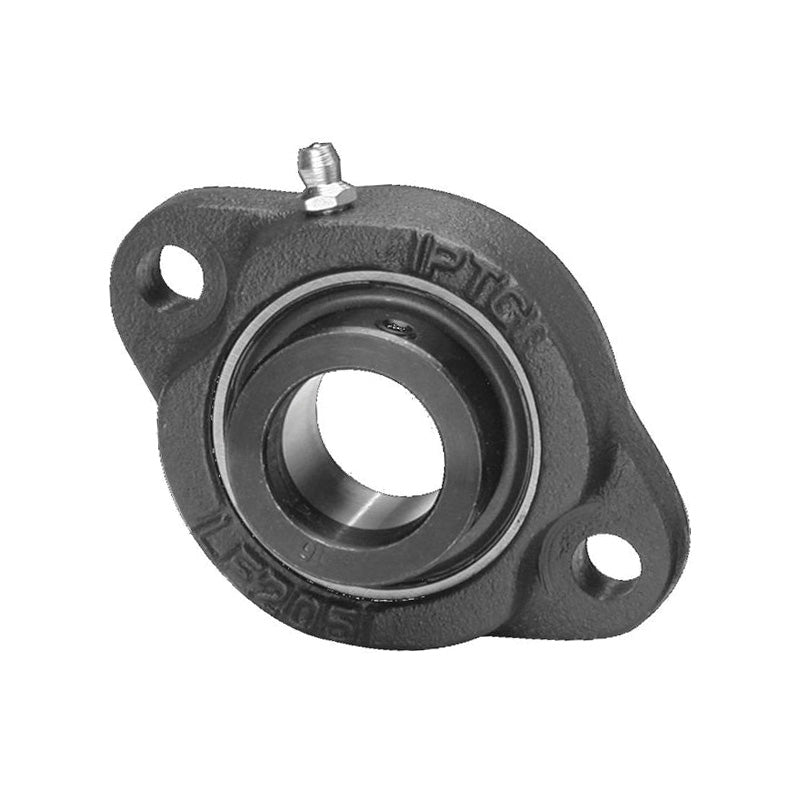

SBLF207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Bore Grub Screw Insert
SBLF207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Bore Grub Screw Insert
Regular price
Rs. 2,122.55
Regular price
Sale price
Rs. 2,122.55
Taxes included.
In stock
Price Break
10+
Rs. 1,889.07
19+
Rs. 1,782.94
29+
Rs. 1,761.72
39+
Rs. 1,740.49
49+
Rs. 1,719.27
74+
Rs. 1,698.04
99+
Rs. 1,591.91
199+
Rs. 1,570.69
249+
Rs. 1,549.46
499+
Rs. 1,528.24
999+
Rs. 1,485.79
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 89mm |
| i | 13mm |
| s | 12mm |
| g | 13mm |
| l | 24mm |
| Bolt | M10 |
| z | 36.5mm |
| n | 8.5mm |
| Weight | 0.9 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
