SKU: SBLF.206-20

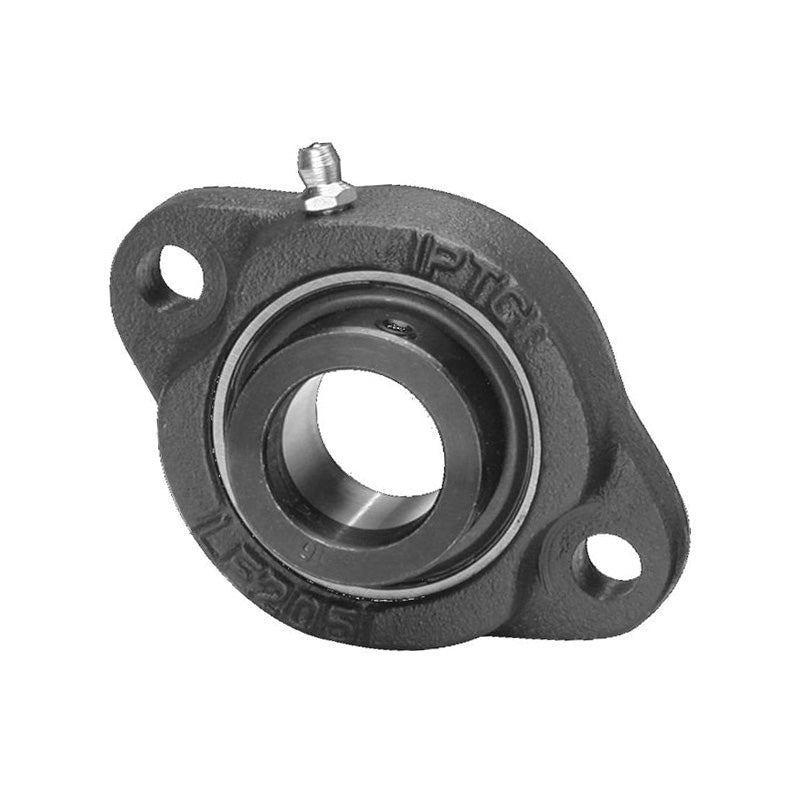

SBLF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
SBLF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
Regular price
Rs. 1,802.50
Regular price
Sale price
Rs. 1,802.50
Taxes included.
In stock
Price Break
10+
Rs. 1,604.23
19+
Rs. 1,514.10
29+
Rs. 1,496.08
39+
Rs. 1,478.05
49+
Rs. 1,460.03
74+
Rs. 1,442.00
99+
Rs. 1,351.88
199+
Rs. 1,333.85
249+
Rs. 1,315.83
499+
Rs. 1,297.80
999+
Rs. 1,261.75
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 76mm |
| i | 12mm |
| s | 12mm |
| g | 12mm |
| l | 22.5mm |
| Bolt | M10 |
| z | 34mm |
| n | 8mm |
| Weight | 0.7 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
