SKU: SBLF.206-19

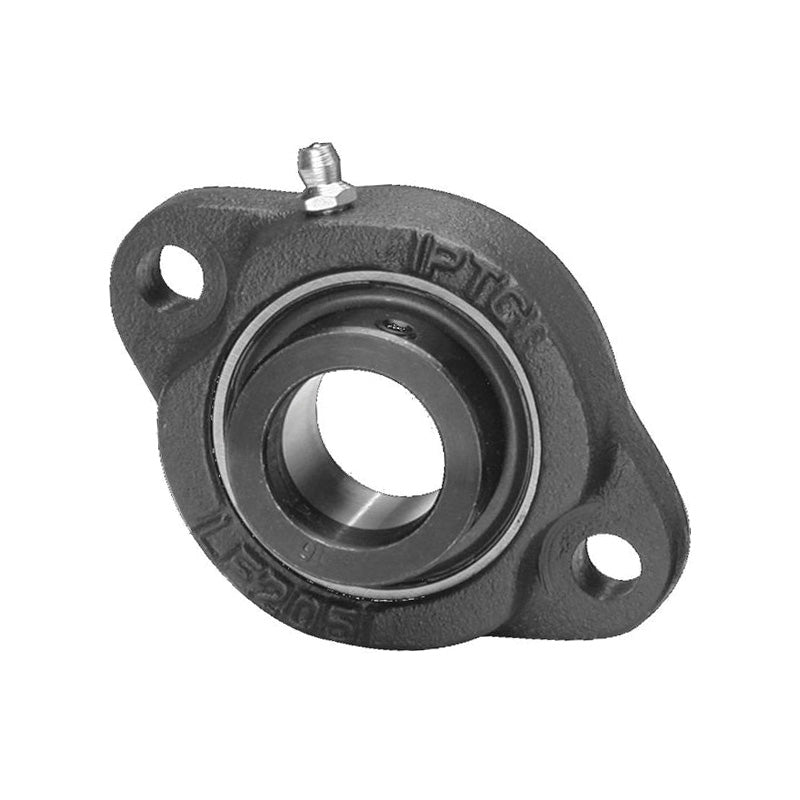

SBLF206-19 Imperial Two Bolt Cast Iron Oval Housing with 1-3/16 inch Bore Grub Screw Insert
SBLF206-19 Imperial Two Bolt Cast Iron Oval Housing with 1-3/16 inch Bore Grub Screw Insert
Regular price
Rs. 2,170.16
ex VAT
Regular price
Sale price
Rs. 2,170.16
ex VAT
In stock
Price Break
10+
Rs. 1,931.44
19+
Rs. 1,822.93
29+
Rs. 1,801.23
39+
Rs. 1,779.53
49+
Rs. 1,757.83
74+
Rs. 1,736.13
99+
Rs. 1,627.62
199+
Rs. 1,605.92
249+
Rs. 1,584.22
499+
Rs. 1,562.52
999+
Rs. 1,519.11
Couldn't load pickup availability
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 76mm |
| i | 12mm |
| s | 12mm |
| g | 12mm |
| l | 22.5mm |
| Bolt | M10 |
| z | 34mm |
| n | 8mm |
| Weight | 0.7 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
