SKU: SBLF.205-16
SBLF205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore Grub Screw Insert
SBLF205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore Grub Screw Insert
Regular price
Rs. 1,438.93
Regular price
Sale price
Rs. 1,438.93
Taxes included.
In stock
Price Break
10+
Rs. 1,280.65
19+
Rs. 1,208.70
29+
Rs. 1,194.31
39+
Rs. 1,179.92
49+
Rs. 1,165.53
74+
Rs. 1,151.14
99+
Rs. 1,079.20
199+
Rs. 1,064.81
249+
Rs. 1,050.42
499+
Rs. 1,036.03
999+
Rs. 1,007.25
Description
Description
|

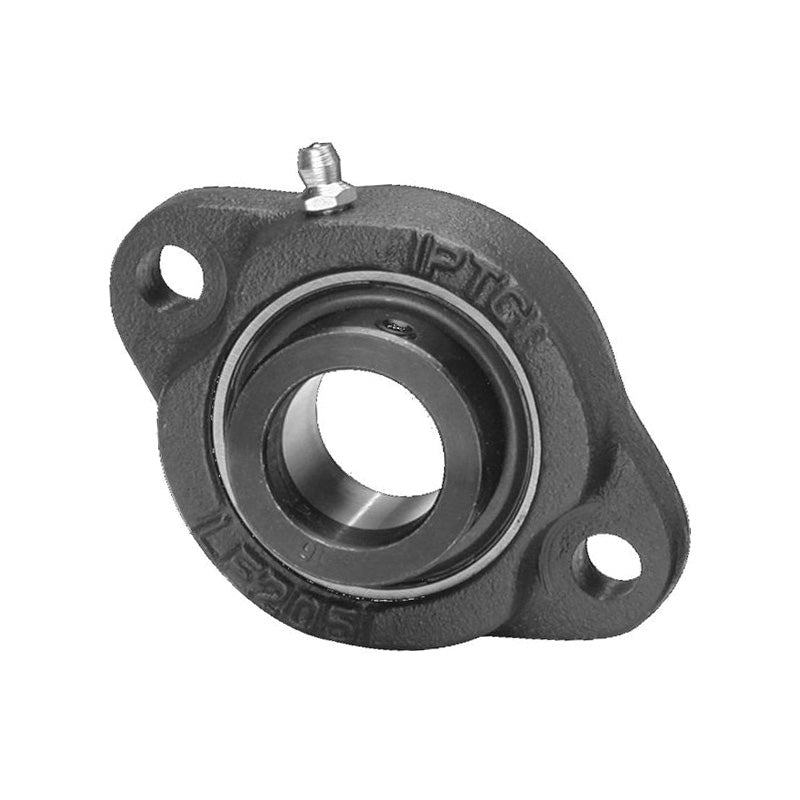

SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SBLF
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 1 inch |
|---|---|
| a | 95mm |
| e | 76mm |
| b | 64mm |
| i | 11mm |
| s | 10mm |
| g | 11mm |
| l | 20mm |
| Bolt | M8 |
| z | 30.5mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
