SKU: SBLF.204

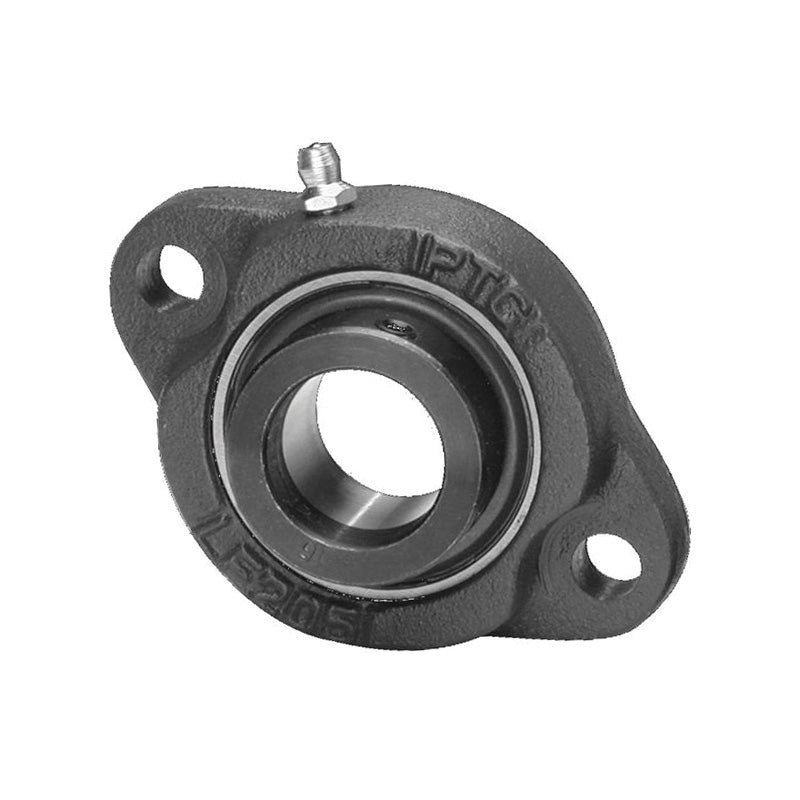

SBLF204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Grub Screw Insert
SBLF204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Grub Screw Insert
Regular price
Rs. 1,385.16
Regular price
Sale price
Rs. 1,385.16
Taxes included.
In stock
Price Break
10+
Rs. 1,232.79
19+
Rs. 1,163.53
29+
Rs. 1,149.68
39+
Rs. 1,135.83
49+
Rs. 1,121.98
74+
Rs. 1,108.13
99+
Rs. 1,038.87
199+
Rs. 1,025.02
249+
Rs. 1,011.17
499+
Rs. 997.32
999+
Rs. 969.61
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SBLF
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 90mm |
| e | 71.5mm |
| b | 61mm |
| i | 11mm |
| s | 10mm |
| g | 11mm |
| l | 20mm |
| Bolt | M8 |
| z | 29mm |
| n | 7mm |
| Weight | 0.4 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
