SKU: SBFW206-20
SBFW206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
SBFW206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
Regular price
Rs. 1,397.11
ex VAT
Regular price
Sale price
Rs. 1,397.11
ex VAT
In stock
Price Break
10+
Rs. 1,243.43
19+
Rs. 1,173.57
29+
Rs. 1,159.60
39+
Rs. 1,145.63
49+
Rs. 1,131.66
74+
Rs. 1,117.69
99+
Rs. 1,047.83
199+
Rs. 1,033.86
249+
Rs. 1,019.89
499+
Rs. 1,005.92
999+
Rs. 977.98
Couldn't load pickup availability
Description
Description
|

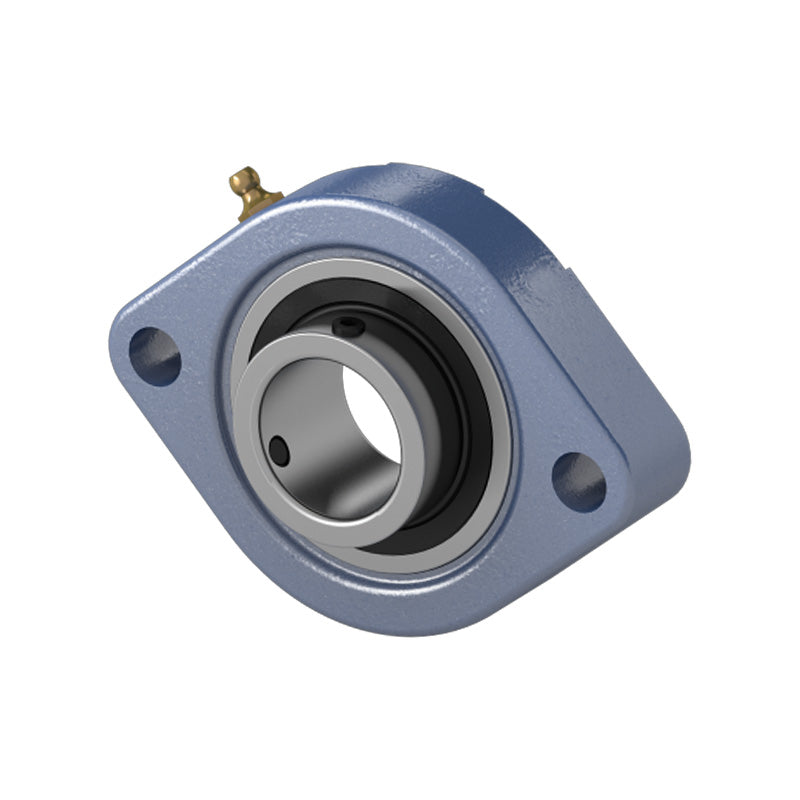

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 112.5mm |
| e | 90.5mm |
| b | 84mm |
| i | 11.5mm |
| s | 11.5mm |
| l | 20.5mm |
| Bolt | M10 |
| z | 33.5mm |
| B | 30mm |
| n | 8mm |
| Weight | 0.8 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
