SKU: SBFW205-16

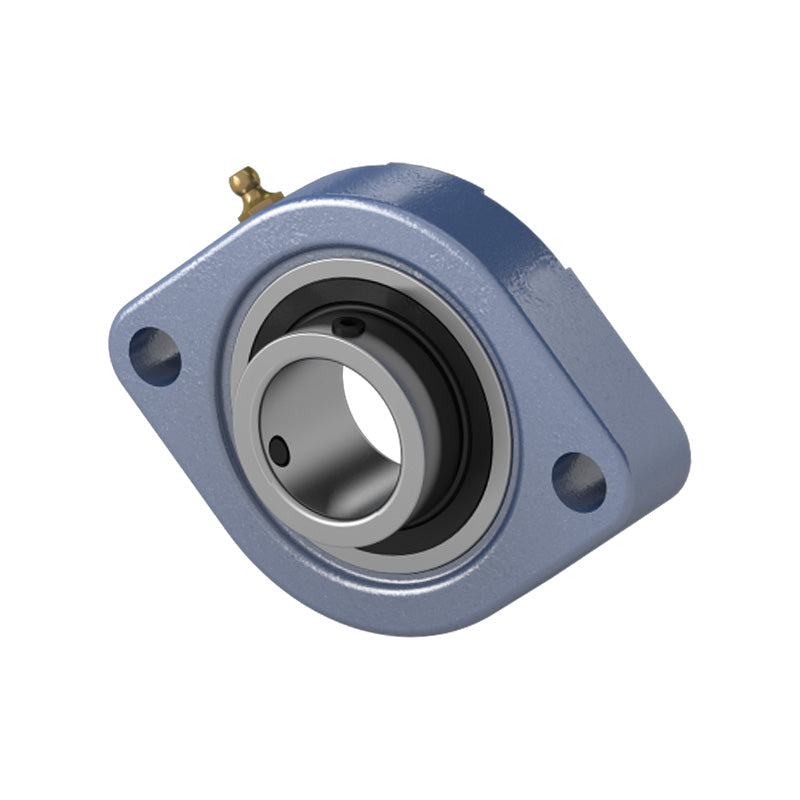

SBFW205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
SBFW205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
Regular price
Rs. 1,035.67
Regular price
Sale price
Rs. 1,035.67
Taxes included.
In stock
Price Break
10+
Rs. 921.75
19+
Rs. 869.96
29+
Rs. 859.61
39+
Rs. 849.25
49+
Rs. 838.89
74+
Rs. 828.54
99+
Rs. 776.75
199+
Rs. 766.40
249+
Rs. 756.04
499+
Rs. 745.68
999+
Rs. 724.97
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 1 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
