SKU: SBFW205-15
SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
Regular price
Rs. 1,780.74
Regular price
Sale price
Rs. 1,780.74
Taxes included.
In stock
Price Break
10+
Rs. 1,584.86
19+
Rs. 1,495.82
29+
Rs. 1,478.01
39+
Rs. 1,460.21
49+
Rs. 1,442.40
74+
Rs. 1,424.59
99+
Rs. 1,335.56
199+
Rs. 1,317.75
249+
Rs. 1,299.94
499+
Rs. 1,282.13
999+
Rs. 1,246.52
Description
Description
|

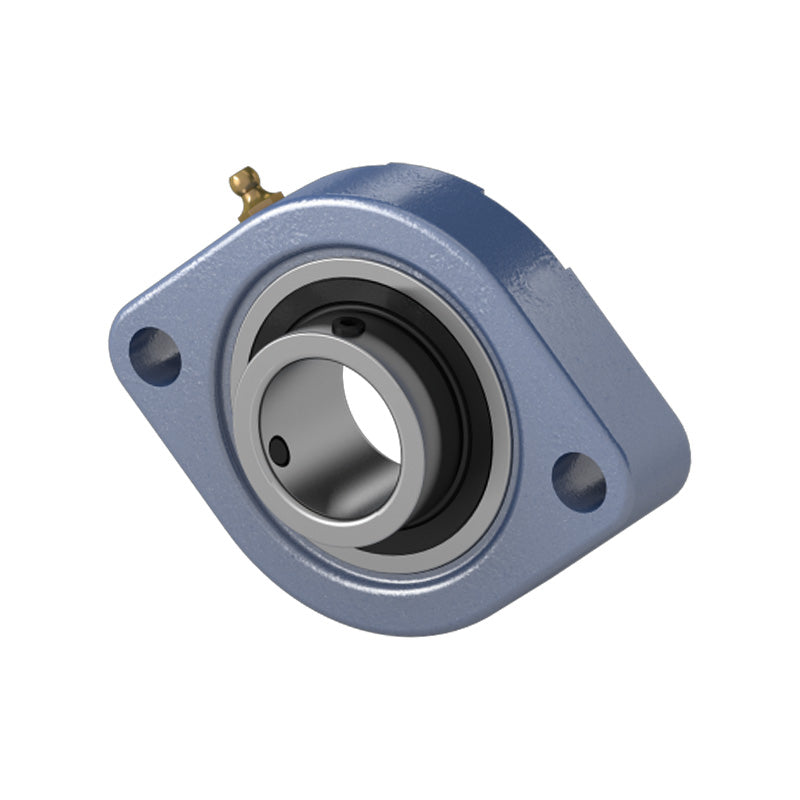

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
