SKU: SBFD207-20

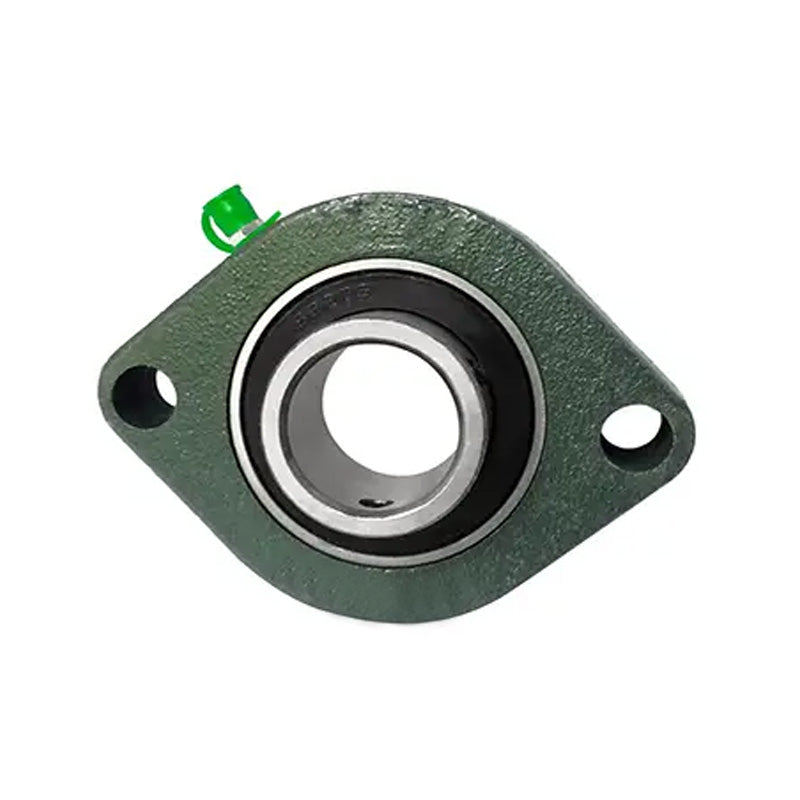

SBFD207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
SBFD207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore
Regular price
Rs. 2,541.01
ex VAT
Regular price
Sale price
Rs. 2,541.01
ex VAT
In stock
Price Break
10+
Rs. 2,261.50
19+
Rs. 2,134.45
29+
Rs. 2,109.04
39+
Rs. 2,083.63
49+
Rs. 2,058.22
74+
Rs. 2,032.81
99+
Rs. 1,905.76
199+
Rs. 1,880.35
249+
Rs. 1,854.94
499+
Rs. 1,829.53
999+
Rs. 1,778.71
Couldn't load pickup availability
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 4-59/64 inch |
| e | 3-15/16 inch |
| b | 3-45/64 inch |
| i | 1/2 inch |
| s | 15/32 inch |
| l | 7/8 inch |
| z | 1-27/64 inch |
| B1 | 1.2598 inch |
| n | 0.3346 inch |
| Bolt size | M10 |
| Bearing no | SB207-20 |
| Housing no | FD207 |
| Weight | 0.9 kg |
