SKU: SBFD201-8

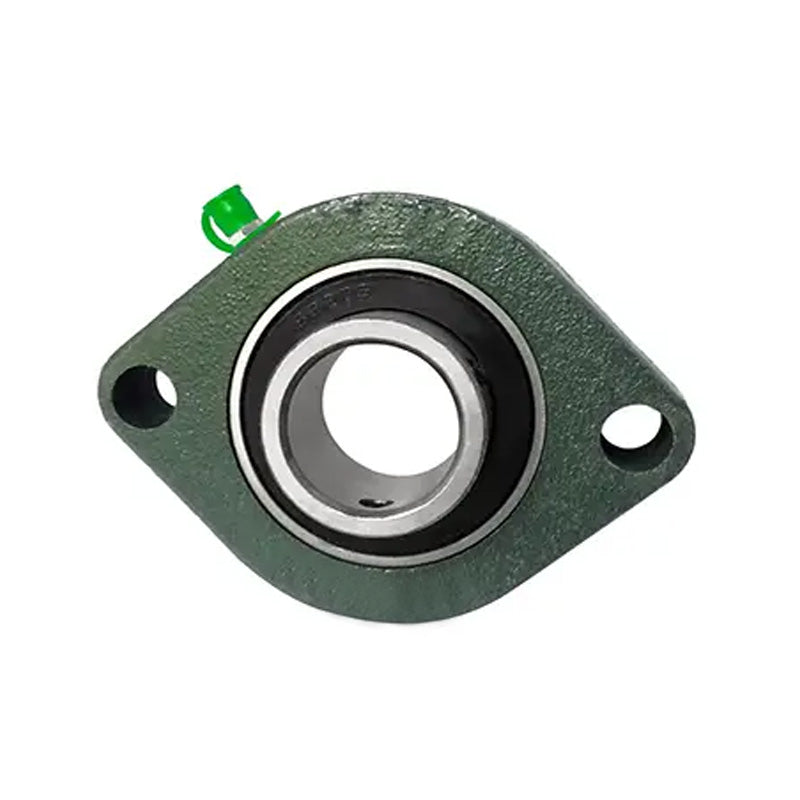

SBFD201-8 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
SBFD201-8 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
Regular price
Rs. 1,412.05
Regular price
Sale price
Rs. 1,412.05
Taxes included.
In stock
Price Break
10+
Rs. 1,256.72
19+
Rs. 1,186.12
29+
Rs. 1,172.00
39+
Rs. 1,157.88
49+
Rs. 1,143.76
74+
Rs. 1,129.64
99+
Rs. 1,059.04
199+
Rs. 1,044.92
249+
Rs. 1,030.80
499+
Rs. 1,016.68
999+
Rs. 988.44
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 63.1mm = 2.484 (2-31/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 3-3/16 inch |
| e | 2-31/64 inch |
| b | 2-21/64 inch |
| i | 21/64 inch |
| s | 9/32 inch |
| l | 19/32 inch |
| z | 61/64 inch |
| B1 | 0.8661 inch |
| n | 0.2362 inch |
| Bolt size | 1/4 inch |
| Bearing no | SB201-8 |
| Housing no | FD203 |
| Weight | 0.3 kg |
