SKU: SB.208-24

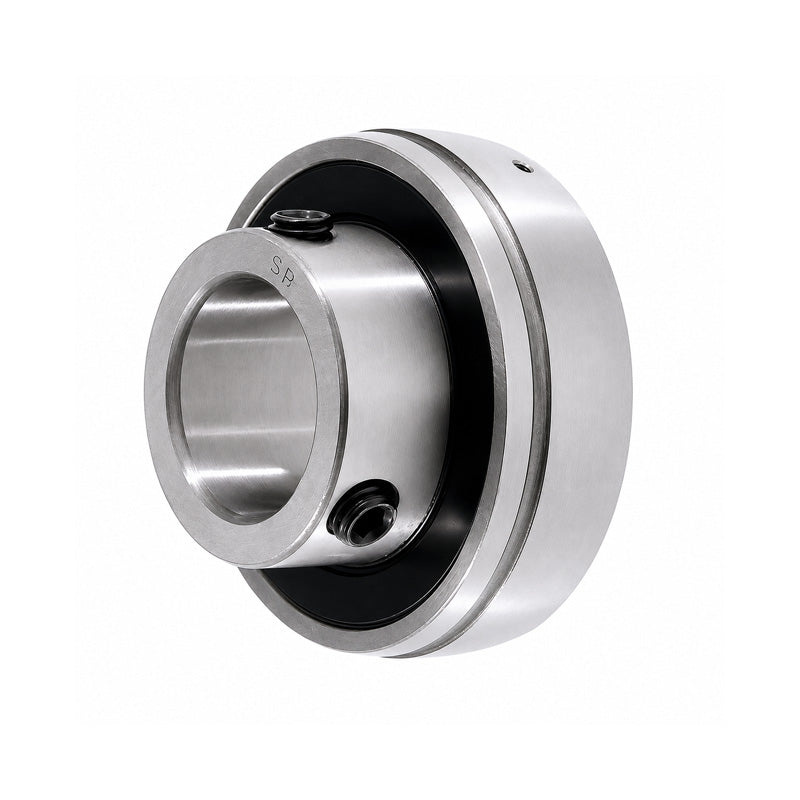

SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
SB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
Rs. 1,096.69
ex VAT
Regular price
Sale price
Rs. 1,096.69
ex VAT
In stock
Price Break
10+
Rs. 976.05
19+
Rs. 921.22
29+
Rs. 910.25
39+
Rs. 899.29
49+
Rs. 888.32
74+
Rs. 877.35
99+
Rs. 822.52
199+
Rs. 811.55
249+
Rs. 800.58
499+
Rs. 789.62
999+
Rs. 767.68
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
