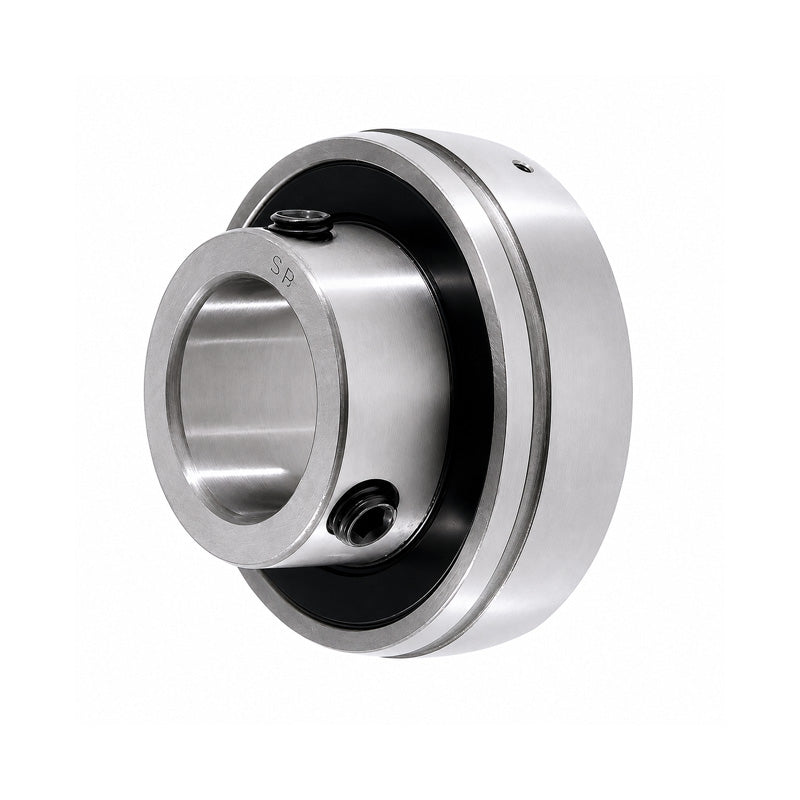

• SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
1 1

SKU: SB.208

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia

SB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
Rs. 1,033.11
Rs. 1,033.11
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 919.47
19+ Rs. 867.81
29+ Rs. 857.48
39+ Rs. 847.15
49+ Rs. 836.82
74+ Rs. 826.49
99+ Rs. 774.83
199+ Rs. 764.50
249+ Rs. 754.17
499+ Rs. 743.84
999+ Rs. 723.18
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Style:
SB
Technical
d 40mm
Be 18mm
D 80mm
Bi 34mm
n 9mm
m 25mm
G 7mm
h 6mm
Grub screw M8X1.0
Weight 0.6 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
