• SB207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
1 1

SKU: SB.207-23

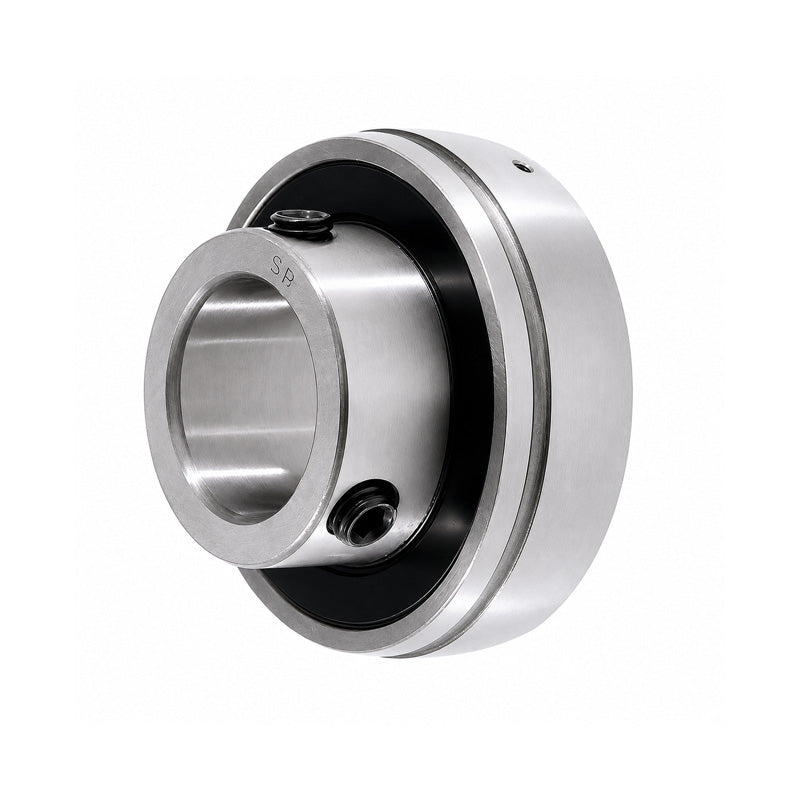

SB207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia

SB207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
Rs. 1,698.81
Rs. 1,698.81
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,511.94
19+ Rs. 1,427.00
29+ Rs. 1,410.01
39+ Rs. 1,393.02
49+ Rs. 1,376.04
74+ Rs. 1,359.05
99+ Rs. 1,274.11
199+ Rs. 1,257.12
249+ Rs. 1,240.13
499+ Rs. 1,223.14
999+ Rs. 1,189.17
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
72mm
Style:
SB
Technical
d 1-7/16 inch
Be 17mm
D 72mm
Bi 32mm
n 8.5mm
m 23.5mm
G 6.5mm
h 5.5mm
Grub screw 5/16-24 UNF
Weight 0.42 kg
Dynamic load 2010 kgf
Static load 1390 kgf
