SKU: SB.206

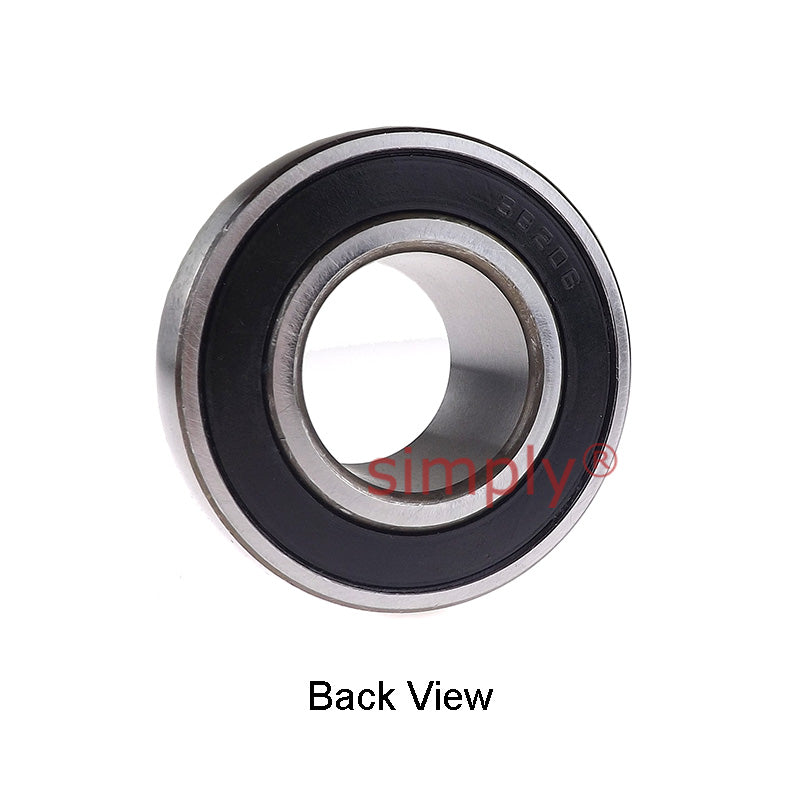

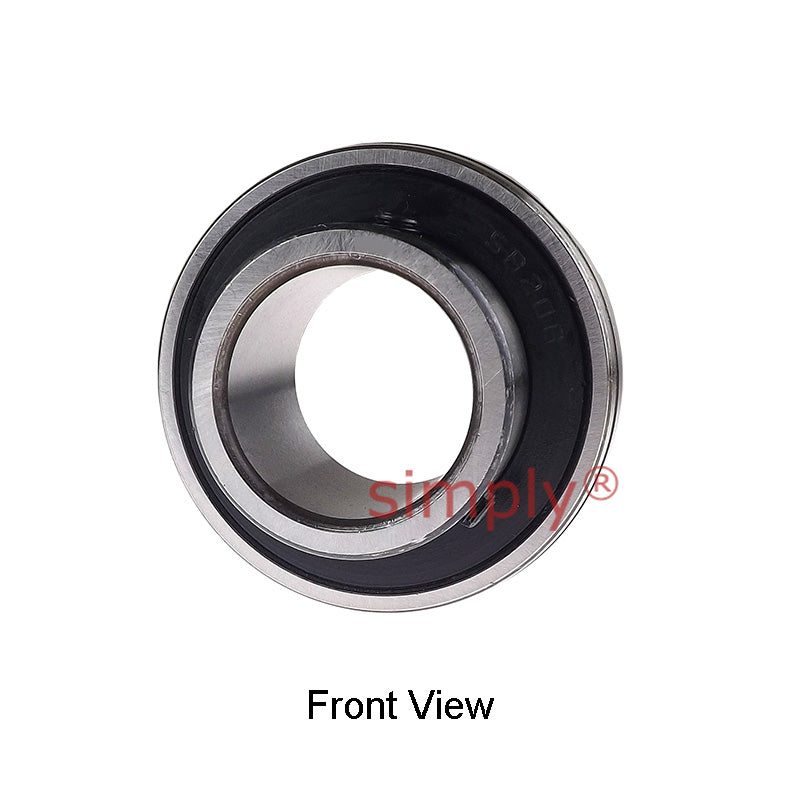

SB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
SB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
Rs. 1,062.56
Regular price
Sale price
Rs. 1,062.56
Taxes included.
In stock
Price Break
10+
Rs. 945.68
19+
Rs. 892.55
29+
Rs. 881.92
39+
Rs. 871.30
49+
Rs. 860.67
74+
Rs. 850.05
99+
Rs. 796.92
199+
Rs. 786.29
249+
Rs. 775.67
499+
Rs. 765.04
999+
Rs. 743.79
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- SB
Technical
Technical
| d | 30mm |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | M6X1.0 |
| Weight | 0.245 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
