SKU: SB.205-16

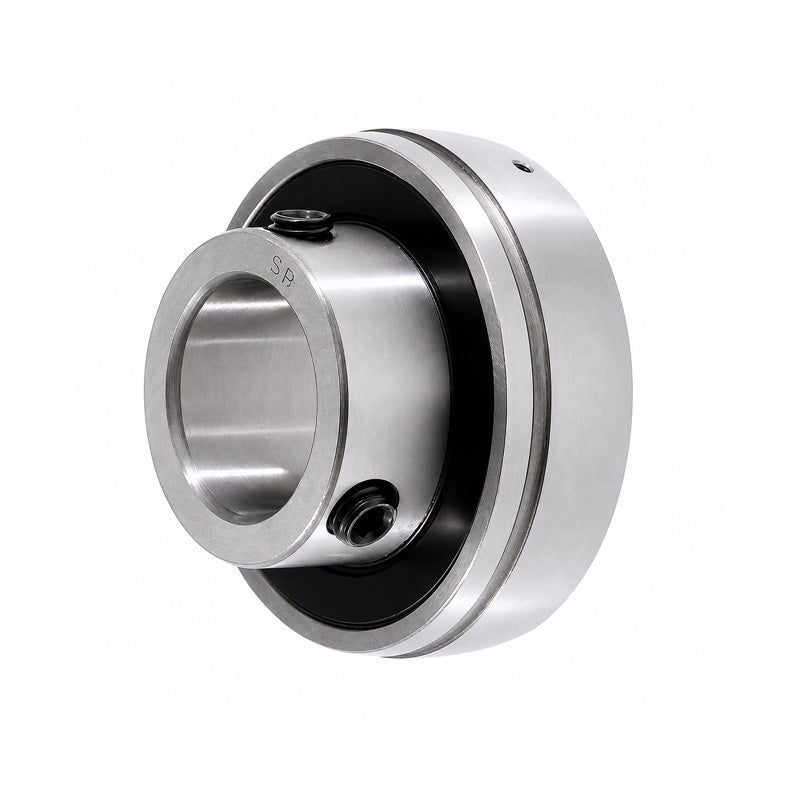

SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
SB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
Rs. 838.35
ex VAT
Regular price
Sale price
Rs. 838.35
ex VAT
In stock
Price Break
10+
Rs. 746.13
19+
Rs. 704.21
29+
Rs. 695.83
39+
Rs. 687.45
49+
Rs. 679.06
74+
Rs. 670.68
99+
Rs. 628.76
199+
Rs. 620.38
249+
Rs. 612.00
499+
Rs. 603.61
999+
Rs. 586.85
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 1 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
