SKU: SB.205-15

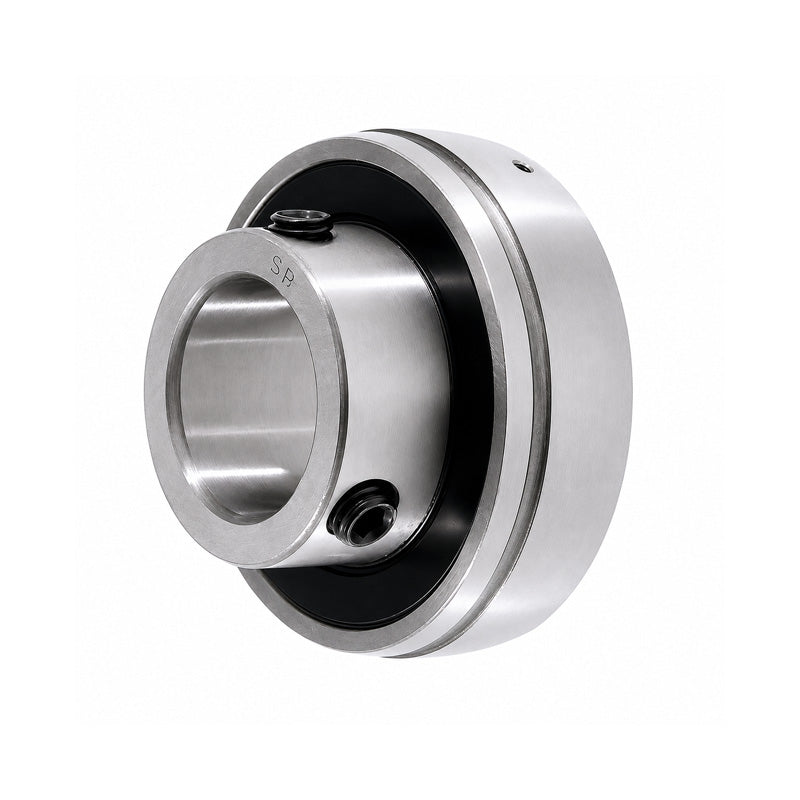

SB205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
SB205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
Regular price
Rs. 1,645.04
Regular price
Sale price
Rs. 1,645.04
Taxes included.
In stock
Price Break
10+
Rs. 1,464.09
19+
Rs. 1,381.83
29+
Rs. 1,365.38
39+
Rs. 1,348.93
49+
Rs. 1,332.48
74+
Rs. 1,316.03
99+
Rs. 1,233.78
199+
Rs. 1,217.33
249+
Rs. 1,200.88
499+
Rs. 1,184.43
999+
Rs. 1,151.53
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- SB
Technical
Technical
| d | 15/16 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
