SKU: SB.204-12G

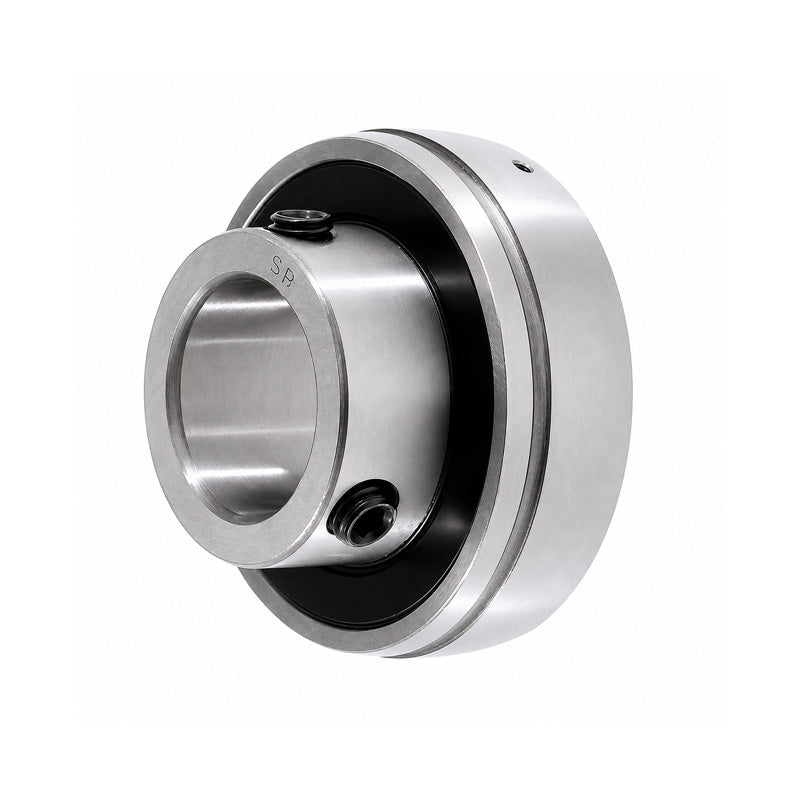

SB204-12G Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
SB204-12G Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
Rs. 766.83
Regular price
Sale price
Rs. 766.83
Taxes included.
In stock
Price Break
10+
Rs. 682.48
19+
Rs. 644.14
29+
Rs. 636.47
39+
Rs. 628.80
49+
Rs. 621.13
74+
Rs. 613.46
99+
Rs. 575.12
199+
Rs. 567.45
249+
Rs. 559.79
499+
Rs. 552.12
999+
Rs. 536.78
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SB
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
