SKU: SB.201-8G

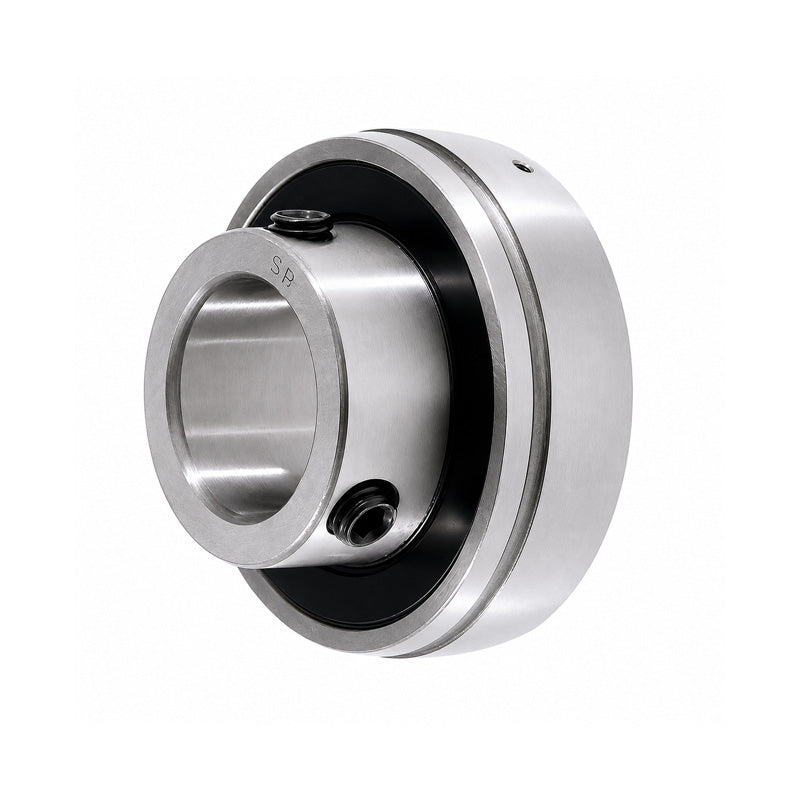

SB201-8G Light Duty Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
SB201-8G Light Duty Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
Regular price
Rs. 665.70
Regular price
Sale price
Rs. 665.70
Taxes included.
In stock
Price Break
10+
Rs. 592.47
19+
Rs. 559.19
29+
Rs. 552.53
39+
Rs. 545.87
49+
Rs. 539.22
74+
Rs. 532.56
99+
Rs. 499.28
199+
Rs. 492.62
249+
Rs. 485.96
499+
Rs. 479.30
999+
Rs. 465.99
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Style:
- SB
Technical
Technical
| d | 1/2 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
