SKU: SALKB16F-SKF

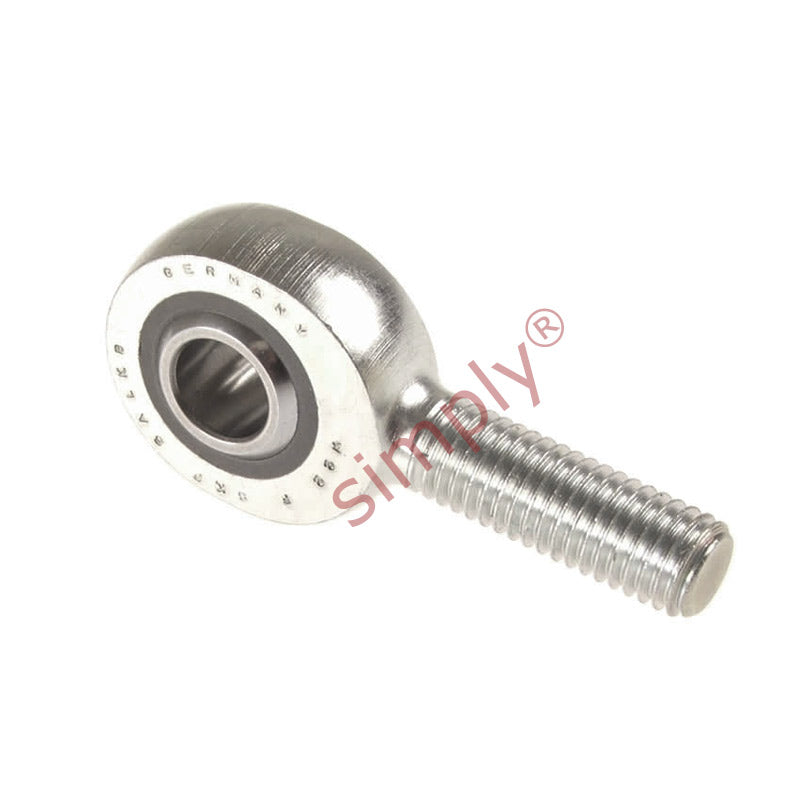

SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
Regular price
Rs. 6,749.60
ex VAT
Regular price
Sale price
Rs. 6,749.60
ex VAT
Equivalent to: MSL-M16
In stock
Price Break
10+
Rs. 6,007.14
19+
Rs. 5,669.66
29+
Rs. 5,602.17
39+
Rs. 5,534.67
49+
Rs. 5,467.18
74+
Rs. 5,399.68
99+
Rs. 5,062.20
199+
Rs. 4,994.70
249+
Rs. 4,927.21
499+
Rs. 4,859.71
999+
Rs. 4,724.72
Couldn't load pickup availability
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M16
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Liner Type:
- PTFE FRP Lined

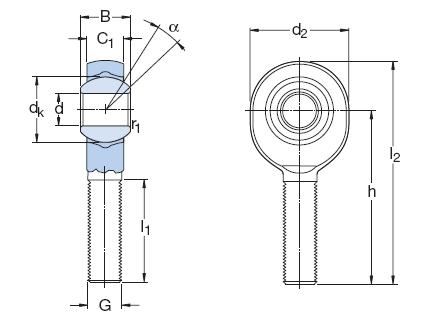

Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h | 66mm |
| a | 15deg |
| Dynamic load C | 21.4 kN |
| Static load Co | 34.5 kN |
| Weight | 0.2 kg |
| dk | 28.5mm |
| l1 min | 37mm |
| l2 max | 89mm |
| r1 min | 0.3mm |
