SKU: SALKAC6M-CDX

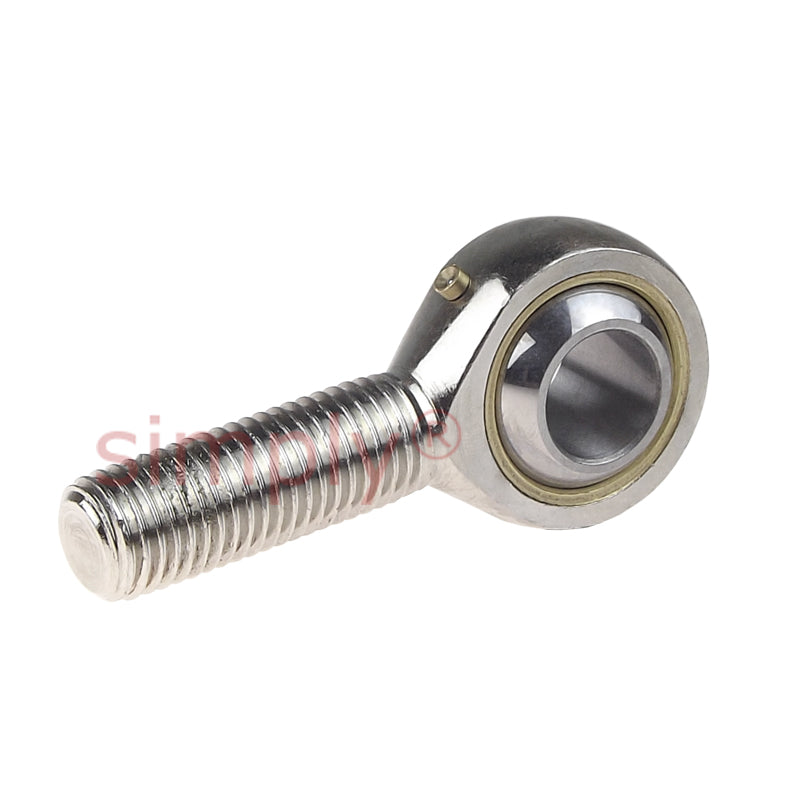

Codex SALKAC6M Left Hand Steel / Bronze Lined Plain Male Rod End M6 Thread
Codex SALKAC6M Left Hand Steel / Bronze Lined Plain Male Rod End M6 Thread
Regular price
Rs. 1,260.92
ex VAT
Regular price
Sale price
Rs. 1,260.92
ex VAT
Equivalent to: POS6L MBL-M06
In stock
Price Break
10+
Rs. 1,122.22
19+
Rs. 1,059.17
29+
Rs. 1,046.56
39+
Rs. 1,033.95
49+
Rs. 1,021.35
74+
Rs. 1,008.74
99+
Rs. 945.69
199+
Rs. 933.08
249+
Rs. 920.47
499+
Rs. 907.86
999+
Rs. 882.64
Couldn't load pickup availability
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS6L MBL-M06
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M6
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 21mm |
| G | M6 |
| B | 9mm |
| C1 max | 6.75mm |
| h1 | 36mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 4.3 kN |
| Static load | 4.8 kN |
| dk | 12.7mm |
| l1 min | 21mm |
| l2 max | 48mm |
| r1 min | 0.3mm |
| Weight | 0.02 kg |
