SKU: SALF203

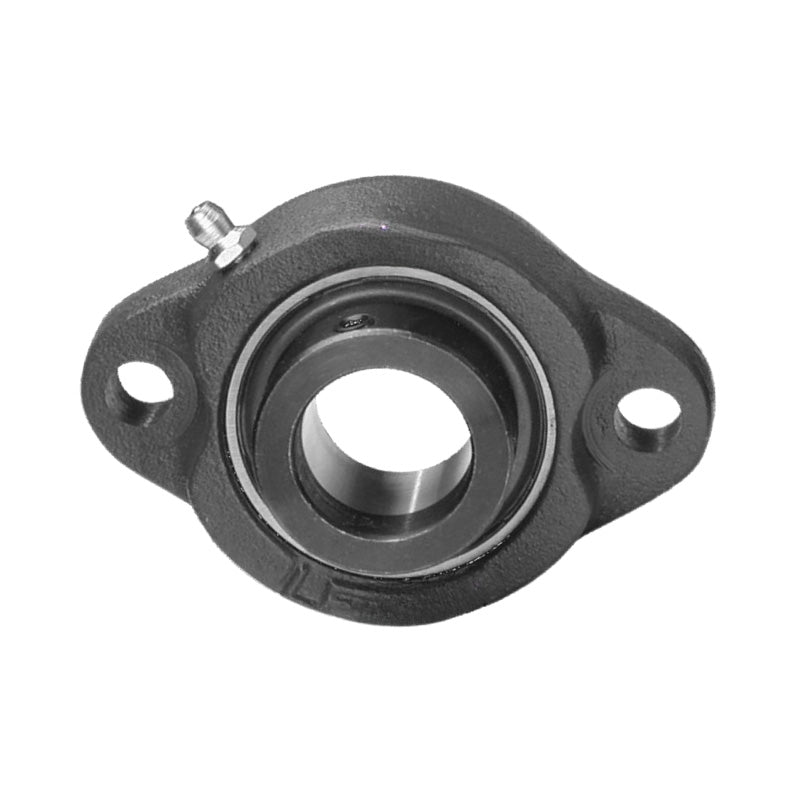

SALF203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert
SALF203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert
Regular price
Rs. 987.02
Regular price
Sale price
Rs. 987.02
Taxes included.
In stock
Price Break
10+
Rs. 878.45
19+
Rs. 829.10
29+
Rs. 819.23
39+
Rs. 809.36
49+
Rs. 799.49
74+
Rs. 789.62
99+
Rs. 740.27
199+
Rs. 730.39
249+
Rs. 720.52
499+
Rs. 710.65
999+
Rs. 690.91
Description
Description
|
SALF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- SALF
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 17mm |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 56mm |
| i | 9.5mm |
| s | 8mm |
| g | 9.5mm |
| l | 18mm |
| Bolt | M6 |
| Z | 31.6mm |
| B | 28.6mm |
| n | 6.5mm |
| Weight | 0.3 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
