SKU: SA.210

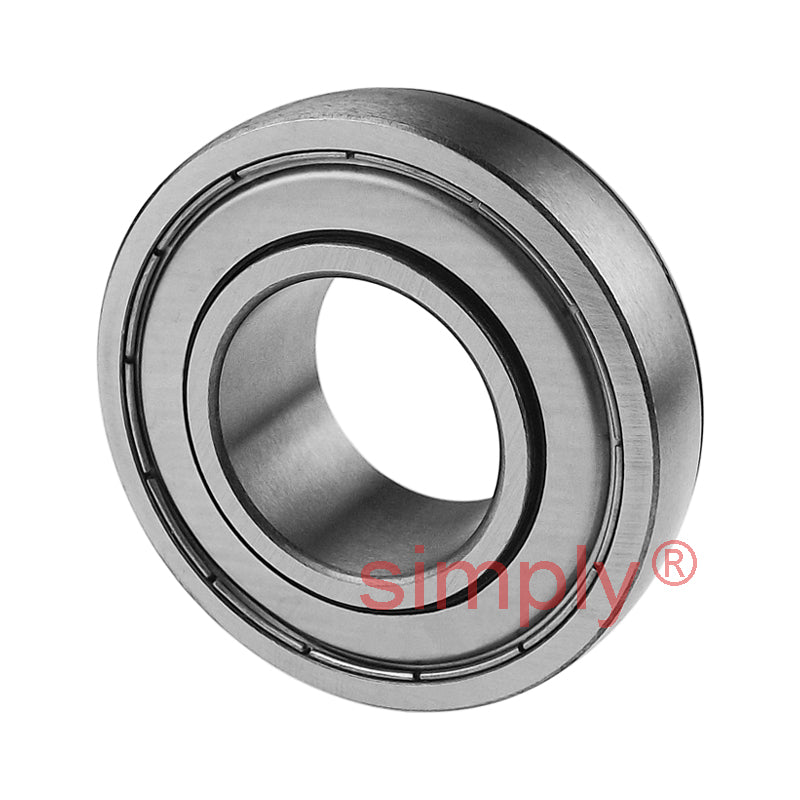

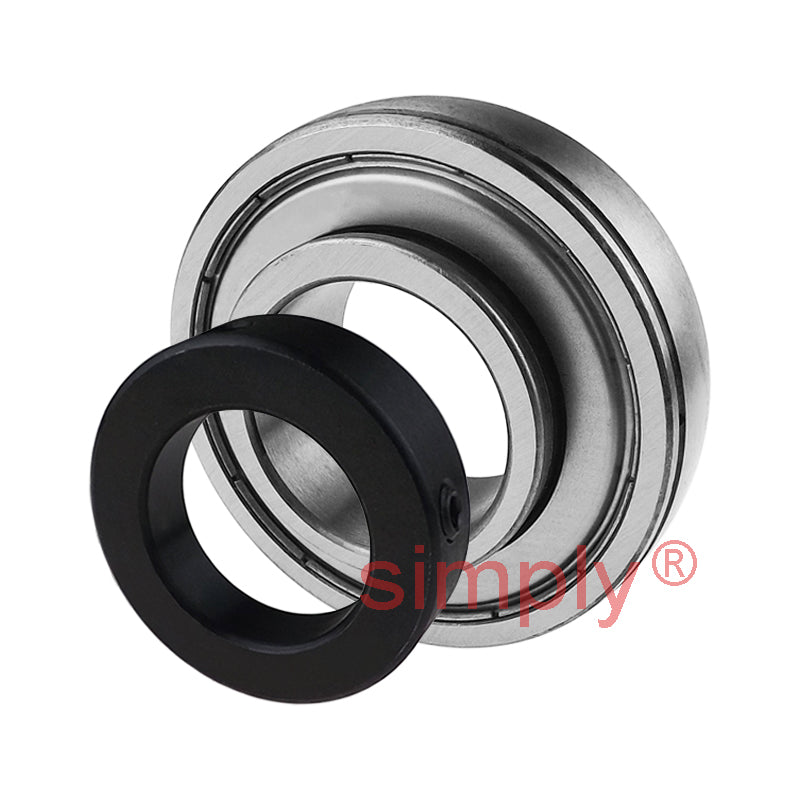

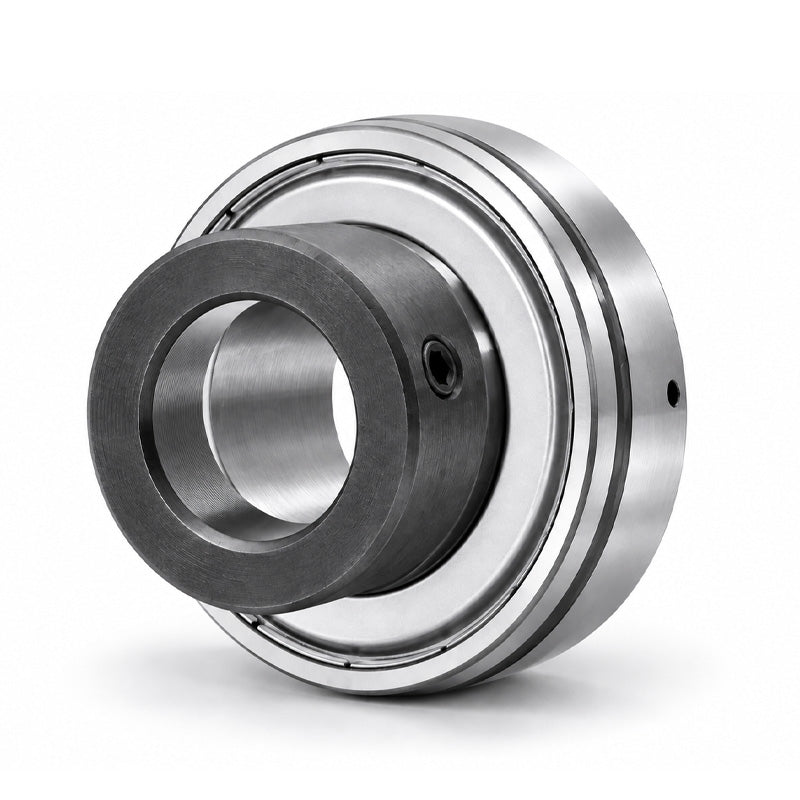

SA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia

SA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia
Rs. 2,699.92
Rs. 2,699.92
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,402.93
19+ Rs. 2,267.93
29+ Rs. 2,240.93
39+ Rs. 2,213.93
49+ Rs. 2,186.94
74+ Rs. 2,159.94
99+ Rs. 2,024.94
199+ Rs. 1,997.94
249+ Rs. 1,970.94
499+ Rs. 1,943.94
999+ Rs. 1,889.94
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Style:
SA
Technical
d 50mm
Be 20mm
D 90mm
z 30.2mm
n 10mm
m 20.2mm
Bi 43.7mm
k 69.9mm
H 18.3mm
G 6.5mm
h 6.5mm
Grub screw M8X1.0
Weight 0.83 kg
Dynamic load 3500 kgf
Static load 2300 kgf
Rec max speed 3400 rpm
