SKU: SA.207-22G

SA207-22G Imperial Bearing Insert with Locking Collar 1-3/8 inch Bore 72mm Outside Dia

SA207-22G Imperial Bearing Insert with Locking Collar 1-3/8 inch Bore 72mm Outside Dia
Rs. 1,632.24
Rs. 1,632.24
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,452.69
19+ Rs. 1,371.08
29+ Rs. 1,354.76
39+ Rs. 1,338.44
49+ Rs. 1,322.11
74+ Rs. 1,305.79
99+ Rs. 1,224.18
199+ Rs. 1,207.86
249+ Rs. 1,191.54
499+ Rs. 1,175.21
999+ Rs. 1,142.57
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

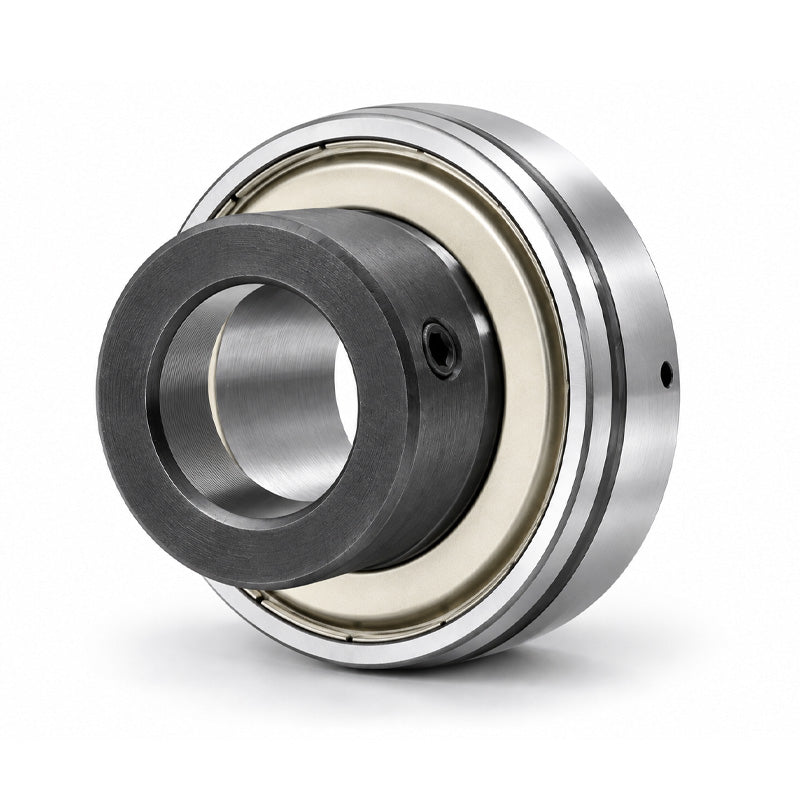

SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
72mm
Style:
SA
Technical
d 1-3/8 inch
Be 17mm
D 72mm
z 25.4mm
n 8.5mm
m 16.9mm
Bi 38.9mm
k 55.6mm
H 17.5mm
G 6.5mm
h 5.5mm
Grub screw 5/16"-24UNF
Weight 0.5 kg
Dynamic load 2010 kgf
Static load 1390 kgf
