SKU: S-UCF212D1-NTN

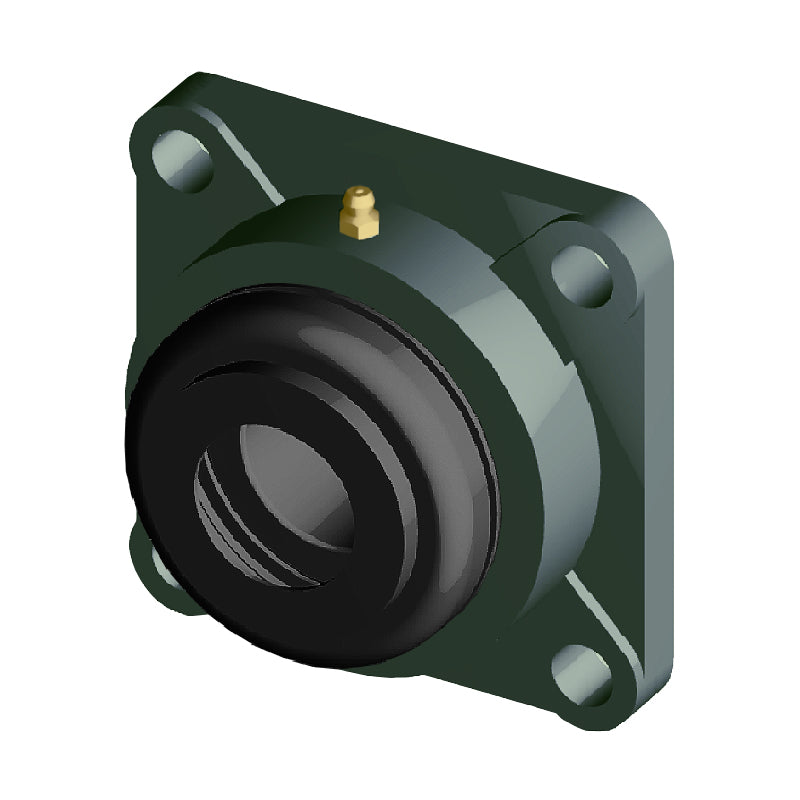

NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
Rs. 10,287.59
Regular price
Sale price
Rs. 10,287.59
Taxes included.
In stock
Price Break
10+
Rs. 9,155.96
19+
Rs. 8,641.58
29+
Rs. 8,538.70
39+
Rs. 8,435.82
49+
Rs. 8,332.95
74+
Rs. 8,230.07
99+
Rs. 7,715.69
199+
Rs. 7,612.82
249+
Rs. 7,509.94
499+
Rs. 7,407.06
999+
Rs. 7,201.31
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 175mm |
| J | 143mm |
| A<sub>2</sub> | 29mm |
| A<sub>1</sub> | 18mm |
| A | 48mm |
| N | 19mm |
| B | 65.1mm |
| S | 25.4mm |
| A<sub>4</sub> | 80mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4.1 kg |
