SKU: S.689-ZZ-W6

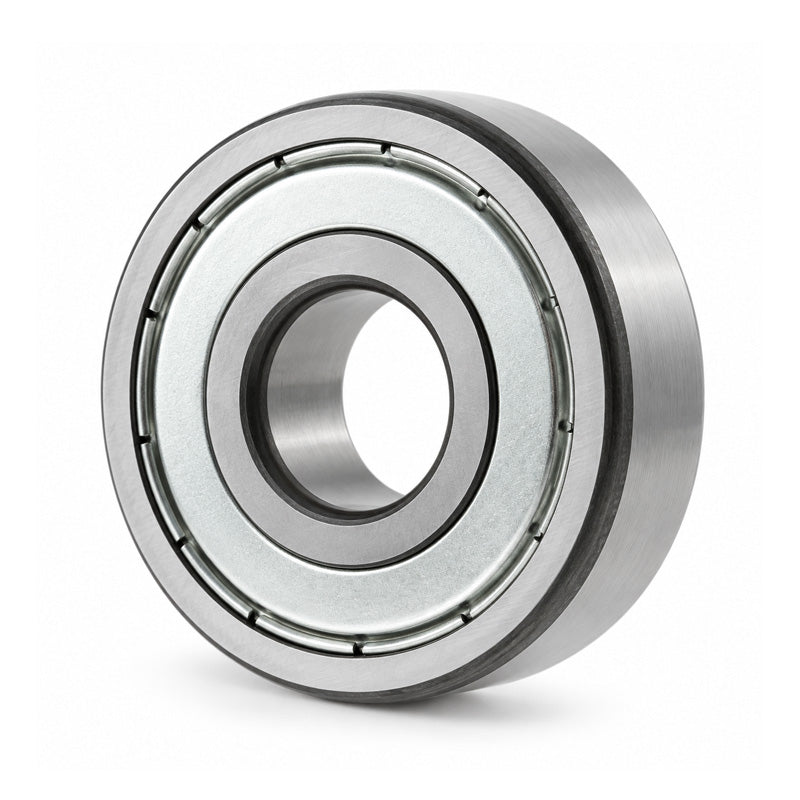

Major Brand S689ZZW6 Stainless Steel Deep Groove Ball Bearing 9x17x6mm
Major Brand S689ZZW6 Stainless Steel Deep Groove Ball Bearing 9x17x6mm
Regular price
Rs. 666.98
Regular price
Sale price
Rs. 666.98
Taxes included.
In stock
Price Break
10+
Rs. 593.61
19+
Rs. 560.26
29+
Rs. 553.59
39+
Rs. 546.92
49+
Rs. 540.25
74+
Rs. 533.58
99+
Rs. 500.24
199+
Rs. 493.57
249+
Rs. 486.90
499+
Rs. 480.23
999+
Rs. 466.89
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 9mm |
|---|---|
| D | 17mm |
| B | 6mm |
| r min | 0.2mm |
| Dynamic load C | 14.014 kN |
| Static load Co | 6.517 kN |
| Max speed | 42000 rpm |
| Mass | 0.01 kg |
