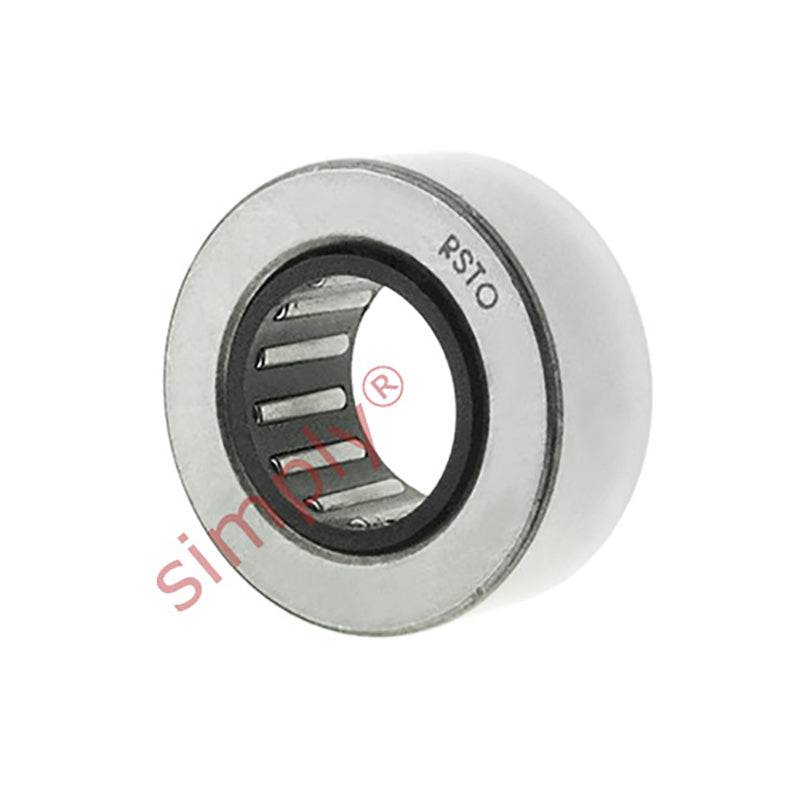

• RSTO17 Budget Support Roller no Axial Guidance no Inner Sleeve 22x40x15.8mm
1 1

SKU: RSTO17-EU

RSTO17 Budget Support Roller no Axial Guidance no Inner Sleeve 22x40x15.8mm

RSTO17 Budget Support Roller no Axial Guidance no Inner Sleeve 22x40x15.8mm
Rs. 1,040.79
Rs. 1,040.79
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 926.30
19+ Rs. 874.26
29+ Rs. 863.86
39+ Rs. 853.45
49+ Rs. 843.04
74+ Rs. 832.63
99+ Rs. 780.59
199+ Rs. 770.18
249+ Rs. 759.78
499+ Rs. 749.37
999+ Rs. 728.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22mm
Outside Diameter:
40mm
Width:
15.8mm
Technical
D 40mm
C 15.8mm
Fw 22mm
E 29mm
r min 0.3mm
Speed rating 2800 rpm
Dynamic load 14200 N
Static load 17600 N
Fatigue load limit Pu 2080 N
Min radial force dynamic load 12000 N
Max radial force dynamic load 17300 N
Weight 88 g
