SKU: RPNA35/52-EU

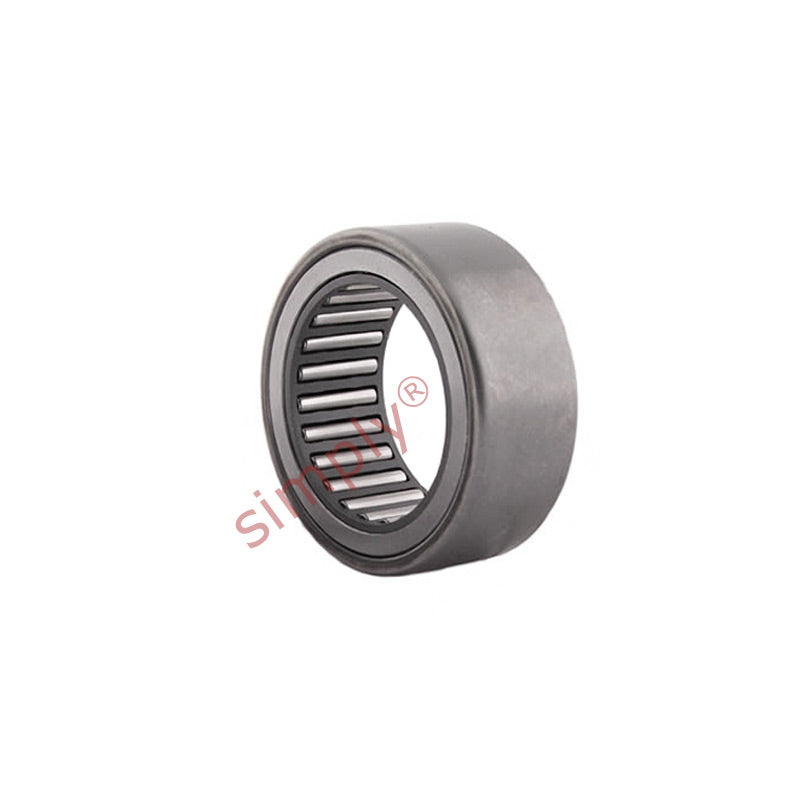

RPNA35/52 Budget Needle Roller Bearing Alignment Type no Inner Race 35x52x20
RPNA35/52 Budget Needle Roller Bearing Alignment Type no Inner Race 35x52x20
Regular price
Rs. 5,374.23
Regular price
Sale price
Rs. 5,374.23
Taxes included.
In stock
Price Break
10+
Rs. 4,783.06
19+
Rs. 4,514.35
29+
Rs. 4,460.61
39+
Rs. 4,406.87
49+
Rs. 4,353.13
74+
Rs. 4,299.38
99+
Rs. 4,030.67
199+
Rs. 3,976.93
249+
Rs. 3,923.19
499+
Rs. 3,869.45
999+
Rs. 3,761.96
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load C | 24600 N |
| Static load Co | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| D1 | 47.5mm |
| r min | 1mm |
| Da min | 46.5mm |
| Da max | 47.5mm |
| ra max | 1mm |
| Weight | 130 g |
